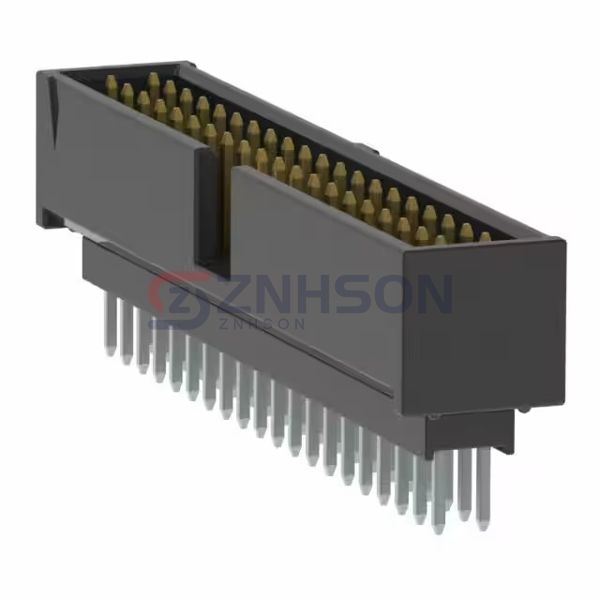

ZSS-120-01-S-D-470
Samtec Inc.
Samtec Inc.
CONN HDR .100" 40POS
$10.46
Available to order
Reference Price (USD)
1+
$10.46000
500+
$10.3554
1000+
$10.2508
1500+
$10.1462
2000+
$10.0416
2500+
$9.937
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-120-01-S-D-470 Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.160" (4.06mm)
- Overall Contact Length: 0.630" (16.00mm)
- Insulation Height: 0.470" (11.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
860-10-023-40-001101
Amphenol ICC (FCI)
67998-464HLF
Samtec Inc.
TSM-136-02-L-SH-A
Preci-Dip
892-70-078-10-001101
Samtec Inc.
TSM-123-01-T-SH-P
Amphenol ICC (FCI)
78207-110HLF
TE Connectivity AMP Connectors
4-103185-0-32
Samtec Inc.

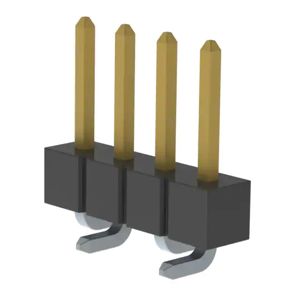

TSM-104-01-LM-SV
