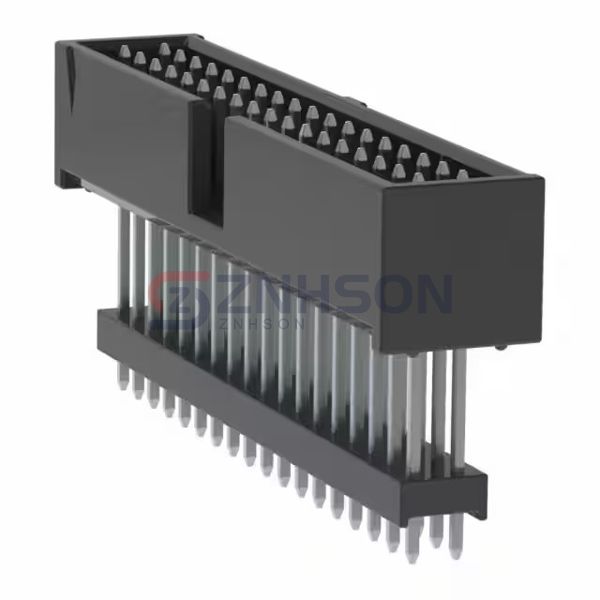

ZSS-118-03-T-D-740

Samtec Inc.
ZSS-118-03-T-D-740 Preview
Samtec Inc.
CONN HDR .100" 36POS
$4.70
Available to order
Reference Price (USD)
1+
$4.70000
500+
$4.653
1000+
$4.606
1500+
$4.559
2000+
$4.512
2500+
$4.465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Elevated
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 36
  • Number of Rows: 2
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.250" (6.35mm)
  • Contact Length - Post: 0.090" (2.29mm)
  • Overall Contact Length: 0.830" (21.08mm)
  • Insulation Height: 0.740" (18.80mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: -
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester, Glass Filled
  • Features: Keying Slot
  • Operating Temperature: -55°C ~ 105°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): 3A
  • Voltage Rating: -

Related Products

Mill-Max Manufacturing Corp.

800-10-017-62-001000

Amphenol ICC (FCI)

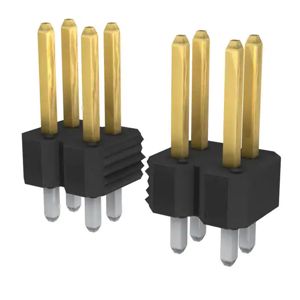

77313-801-32LF

Amphenol ICC (FCI)

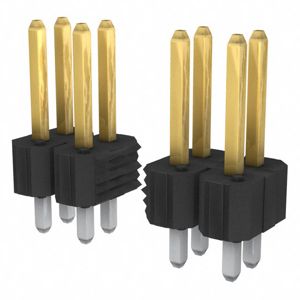

67996-514HLF
