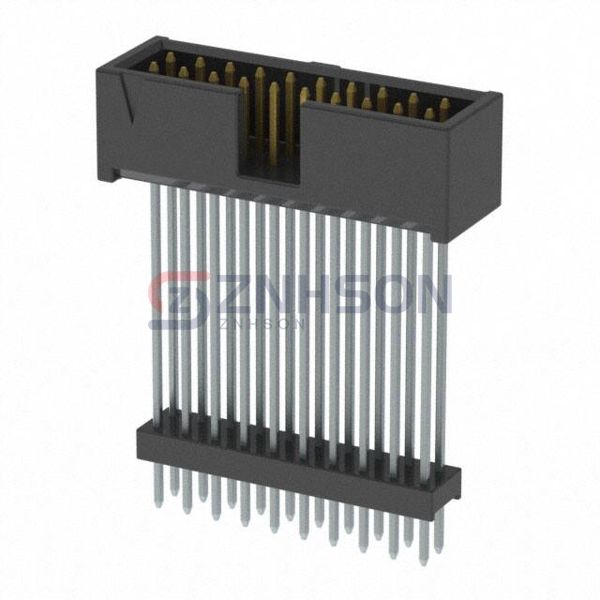

ZSS-110-09-L-D-1286
Samtec Inc.
Samtec Inc.
CONN HDR .100" 20POS
$4.91
Available to order
Reference Price (USD)
1+
$4.91000
500+
$4.8609
1000+
$4.8118
1500+
$4.7627
2000+
$4.7136
2500+
$4.6645
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-110-09-L-D-1286 Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.144" (3.66mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 1.286" (32.66mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
