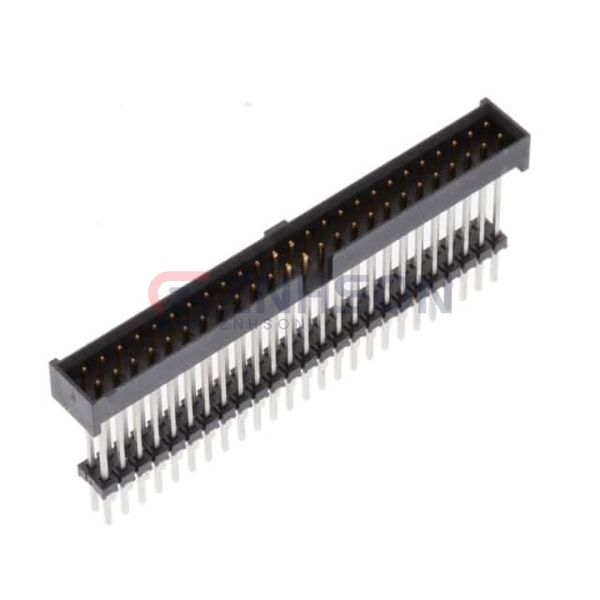

ZLTMM-125-71-L-D-625
Samtec Inc.
Samtec Inc.
CONN BRD STACK 2MM 50POS
$17.51
Available to order
Reference Price (USD)
1+
$17.51000
500+
$17.3349
1000+
$17.1598
1500+
$16.9847
2000+
$16.8096
2500+
$16.6345
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZLTMM-125-71-L-D-625 Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.210" (5.33mm)
- Overall Contact Length: 0.830" (21.08mm)
- Insulation Height: 0.625" (15.88mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
