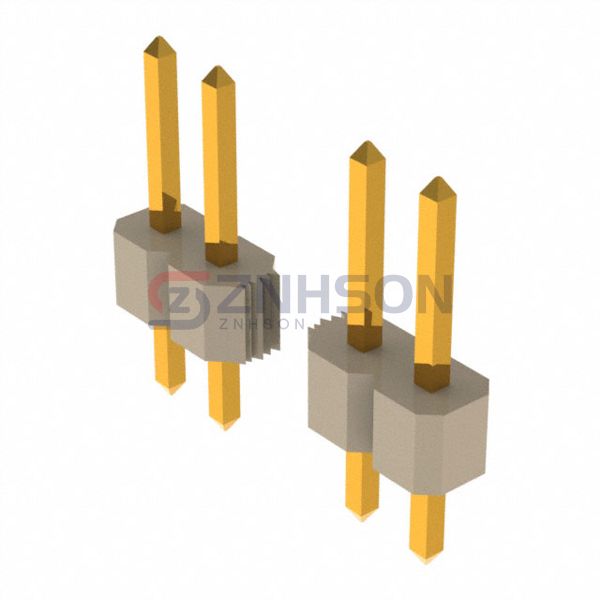

YMC35SAAN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 35POS 2.54MM
$0.00
Available to order
Reference Price (USD)
1+
$27.02000
10+
$24.39300
25+
$23.37080
50+
$21.91000
100+
$21.17970
250+
$20.01112
500+
$19.42688
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with YMC35SAAN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Obsolete
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 35
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Gold
- Contact Material: Beryllium Copper
- Insulation Material: Polyetheretherketone (PEEK)
- Features: -
- Operating Temperature: -65°C ~ 250°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Tan
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-120-03-H-DV
Samtec Inc.
TMM-113-06-G-D-SM-P-TR
Samtec Inc.
FTE-170-03-G-DV-A
Amphenol ICC (FCI)
91276-413HLF
Samtec Inc.
MMT-132-02-T-DH
Samtec Inc.
TMM-108-01-LM-S-RE
Samtec Inc.
FTSH-107-02-LM-MT
Amphenol ICC (FCI)
68022-234HLF

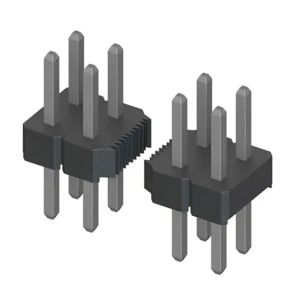

Harwin Inc.
