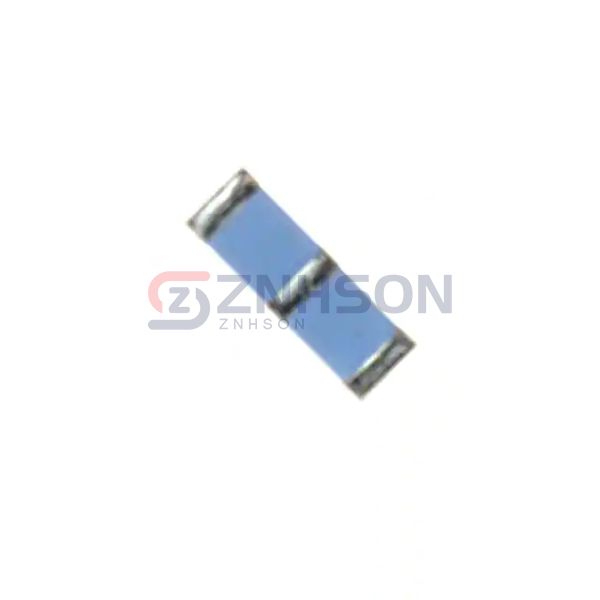

Y1685V0004FT9R
Vishay Foil Resistors (Division of Vishay Precisio
Vishay Foil Resistors (Division of Vishay Precisio
RES NETWORK 2 RES 1K OHM 1505
$9.50
Available to order
Reference Price (USD)
1,000+
$9.73875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Vishay Foil Resistors (Division of Vishay Precisio's Y1685V0004FT9R resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every Y1685V0004FT9R unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Voltage Divider
- Resistance (Ohms): 1k
- Tolerance: ±1%
- Number of Resistors: 2
- Resistor Matching Ratio: ±0.01%
- Resistor-Ratio-Drift: ±0.1ppm/°C
- Number of Pins: 3
- Power Per Element: 50mW
- Temperature Coefficient: ±0.2ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: Voltage Divider (TCR Matched)
- Mounting Type: Surface Mount
- Package / Case: 1505 (3812 Metric)
- Supplier Device Package: -
- Size / Dimension: 0.150" L x 0.050" W (3.81mm x 1.27mm)
- Height - Seated (Max): 0.025" (0.64mm)
