XG4C2031BYOMZ
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div

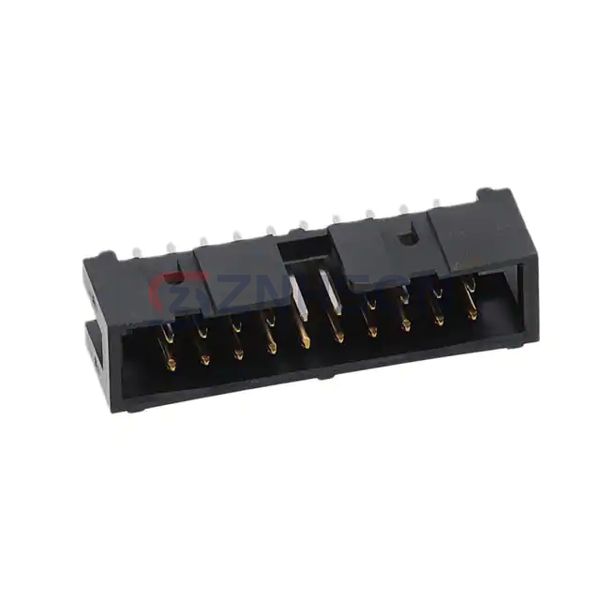

CONN HEADER VERT 20POS 2.54MM
$1.97
Available to order
Reference Price (USD)
1+
$1.97000
500+
$1.9503
1000+
$1.9306
1500+
$1.9109
2000+
$1.8912
2500+
$1.8715
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The XG4C2031BYOMZ Omron Electronics Inc-EMC Div Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Omron Electronics Inc-EMC Div for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.480" (12.19mm)
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Tin
- Contact Material: Brass, Nickel
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
