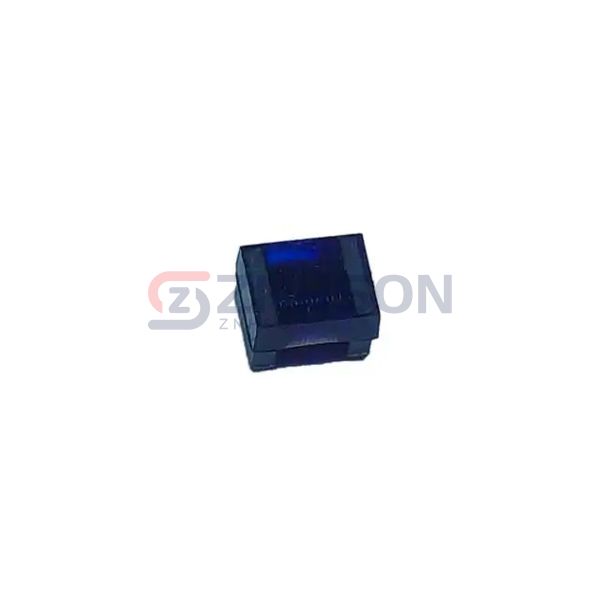

WCLA2520V1-220-R
Eaton - Electronics Division
Eaton - Electronics Division
CHIP IND 22.0UH 0.26A SMT 2 PAD
$0.44
Available to order
Reference Price (USD)
1+
$0.44000
500+
$0.4356
1000+
$0.4312
1500+
$0.4268
2000+
$0.4224
2500+
$0.418
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with WCLA2520V1-220-R Fixed Inductors from Eaton - Electronics Division, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. WCLA2520V1-220-R ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Wirewound
- Material - Core: Ferrite
- Inductance: 22 µH
- Tolerance: ±10%
- Current Rating (Amps): 260 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 1.96Ohm Max
- Q @ Freq: 12 @ 2.52MHz
- Frequency - Self Resonant: 18MHz
- Ratings: AEC-Q200
- Operating Temperature: -55°C ~ 125°C
- Inductance Frequency - Test: 2.52 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1008 (2520 Metric)
- Supplier Device Package: 1008
- Size / Dimension: 0.115" L x 0.098" W (2.92mm x 2.50mm)
- Height - Seated (Max): 0.083" (2.10mm)
