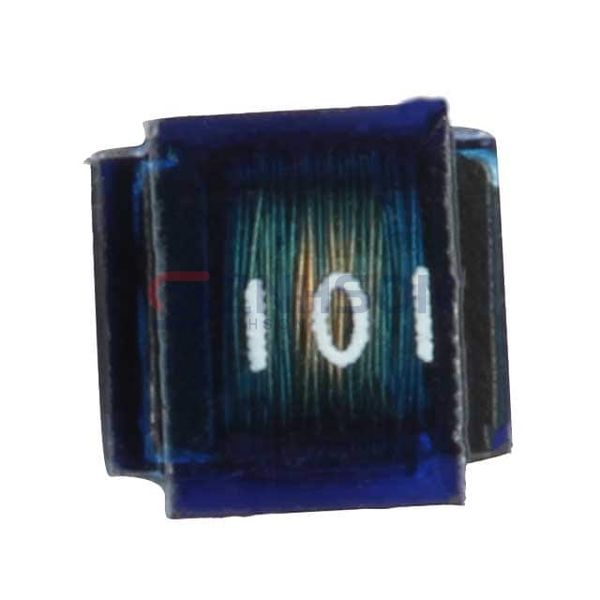

WCL2520-8R2-R

Eaton - Electronics Division
WCL2520-8R2-R Preview
Eaton - Electronics Division
FIXED IND 8.2UH 160MA 2.2OHM SMD
$0.11
Available to order
Reference Price (USD)
1+
$0.11340
500+
$0.112266
1000+
$0.111132
1500+
$0.109998
2000+
$0.108864
2500+
$0.10773
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Type: Drum Core, Wirewound
  • Material - Core: Ceramic
  • Inductance: 8.2 µH
  • Tolerance: ±5%
  • Current Rating (Amps): 160 mA
  • Current - Saturation (Isat): -
  • Shielding: Unshielded
  • DC Resistance (DCR): 2.2Ohm Max
  • Q @ Freq: 12 @ 7.96MHz
  • Frequency - Self Resonant: 25MHz
  • Ratings: -
  • Operating Temperature: -40°C ~ 85°C
  • Inductance Frequency - Test: 7.96 MHz
  • Features: -
  • Mounting Type: Surface Mount
  • Package / Case: 1008 (2520 Metric)
  • Supplier Device Package: 1008
  • Size / Dimension: 0.115" L x 0.110" W (2.92mm x 2.79mm)
  • Height - Seated (Max): 0.083" (2.10mm)
