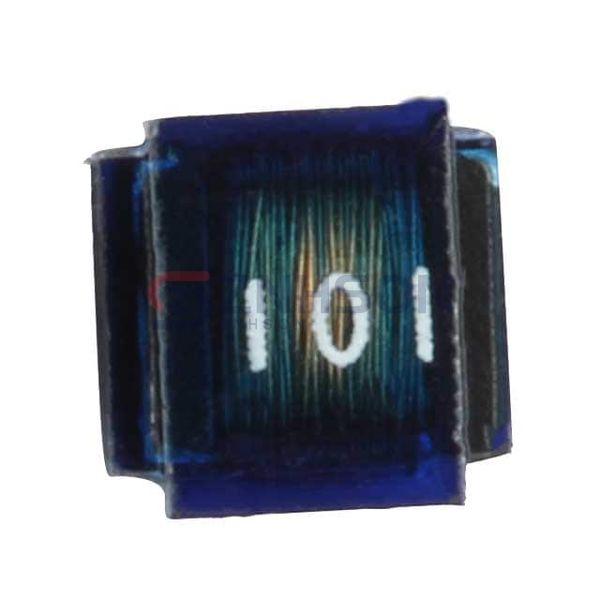

WCL2520-820-R
Eaton - Electronics Division
Eaton - Electronics Division
FIXED IND 82UH 45MA 7.5 OHM SMD
$0.11
Available to order
Reference Price (USD)
1+
$0.11340
500+
$0.112266
1000+
$0.111132
1500+
$0.109998
2000+
$0.108864
2500+
$0.10773
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with WCL2520-820-R Fixed Inductors from Eaton - Electronics Division, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. WCL2520-820-R ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ceramic
- Inductance: 82 µH
- Tolerance: ±5%
- Current Rating (Amps): 45 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 7.5Ohm Max
- Q @ Freq: 10 @ 2.52MHz
- Frequency - Self Resonant: 6.5MHz
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Inductance Frequency - Test: 2.52 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1008 (2520 Metric)
- Supplier Device Package: 1008
- Size / Dimension: 0.115" L x 0.110" W (2.92mm x 2.79mm)
- Height - Seated (Max): 0.083" (2.10mm)
