WCL2520-560-R
Eaton - Electronics Division
Eaton - Electronics Division
FIXED IND 56UH 55MA 6 OHM SMD
$0.11
Available to order
Reference Price (USD)
1+
$0.11340
500+
$0.112266
1000+
$0.111132
1500+
$0.109998
2000+
$0.108864
2500+
$0.10773
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with WCL2520-560-R Fixed Inductors from Eaton - Electronics Division, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. WCL2520-560-R ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ceramic
- Inductance: 56 µH
- Tolerance: ±5%
- Current Rating (Amps): 55 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 6Ohm Max
- Q @ Freq: 10 @ 2.52MHz
- Frequency - Self Resonant: 6.5MHz
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Inductance Frequency - Test: 2.52 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1008 (2520 Metric)
- Supplier Device Package: 1008
- Size / Dimension: 0.115" L x 0.110" W (2.92mm x 2.79mm)
- Height - Seated (Max): 0.083" (2.10mm)
Related Products
Bourns Inc.
2300HT-100-H-RC
Allied Components International
AHC30-1R2K-RC
Central Technologies
CTMC1210SF-2R7J
Central Technologies
CT0805CSF-270K
Taiyo Yuden
NRV3012T100MV
Bourns Inc.
RL622-102K-RC
Shenzhen Sunlord Electronics Co., Ltd.

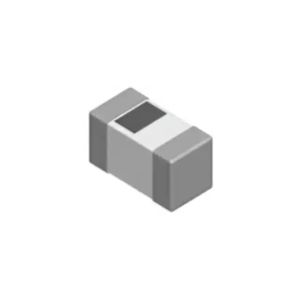

SDCL0603Q2N3BT02B03
Central Technologies

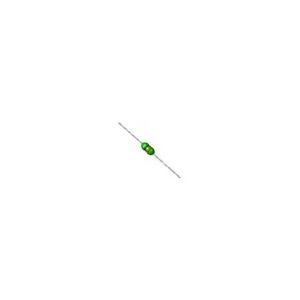

CTC2F-4R7K
Shenzhen Sunlord Electronics Co., Ltd.

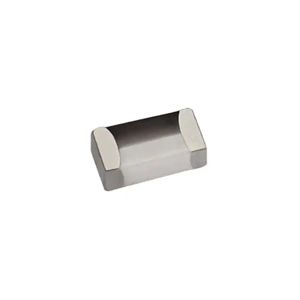

SDCL0402H1N0CT01
