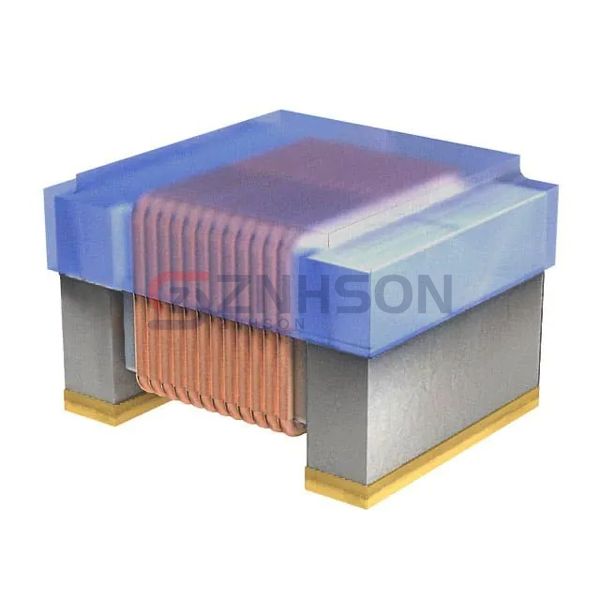

WB0805TR22SJ
CAL-CHIP ELECTRONICS, INC.
CAL-CHIP ELECTRONICS, INC.
WW IND 0805 220NH 5%
$0.08
Available to order
Reference Price (USD)
1+
$0.08500
500+
$0.08415
1000+
$0.0833
1500+
$0.08245
2000+
$0.0816
2500+
$0.08075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality WB0805TR22SJ Fixed Inductors from CAL-CHIP ELECTRONICS, INC., designed for precision and reliability in electronic circuits. These inductors feature excellent inductance stability, low DC resistance, and high current handling capabilities, making them ideal for power supplies, filters, and RF applications. Whether you're working on consumer electronics or industrial equipment, WB0805TR22SJ delivers consistent performance. Interested in bulk orders or custom solutions? Contact us today for a quote!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ceramic
- Inductance: 220 nH
- Tolerance: ±5%
- Current Rating (Amps): 400 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 700mOhm Max
- Q @ Freq: 50 @ 250MHz
- Frequency - Self Resonant: 850MHz
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Inductance Frequency - Test: 100 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 0805 (2012 Metric)
- Supplier Device Package: 0805
- Size / Dimension: 0.090" L x 0.068" W (2.29mm x 1.73mm)
- Height - Seated (Max): 0.060" (1.52mm)
