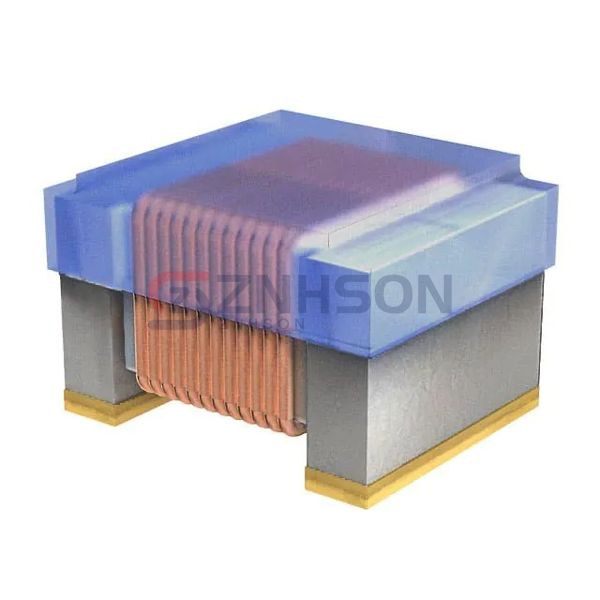

WB0805T24NSG
CAL-CHIP ELECTRONICS, INC.
CAL-CHIP ELECTRONICS, INC.
WW IND 0805 24NH 2%
$0.09
Available to order
Reference Price (USD)
1+
$0.09000
500+
$0.0891
1000+
$0.0882
1500+
$0.0873
2000+
$0.0864
2500+
$0.0855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic designs with WB0805T24NSG Fixed Inductors from CAL-CHIP ELECTRONICS, INC., built for precision and durability. These inductors offer low DCR, high self-resonant frequency, and excellent temperature stability, making them ideal for data centers, robotics, and smart home devices. WB0805T24NSG is synonymous with quality. Need assistance with product selection? Request a consultation today!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ceramic
- Inductance: 24 nH
- Tolerance: ±2%
- Current Rating (Amps): 500 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 220mOhm Max
- Q @ Freq: 50 @ 500MHz
- Frequency - Self Resonant: 2GHz
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Inductance Frequency - Test: 250 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 0805 (2012 Metric)
- Supplier Device Package: 0805
- Size / Dimension: 0.090" L x 0.068" W (2.29mm x 1.73mm)
- Height - Seated (Max): 0.060" (1.52mm)
