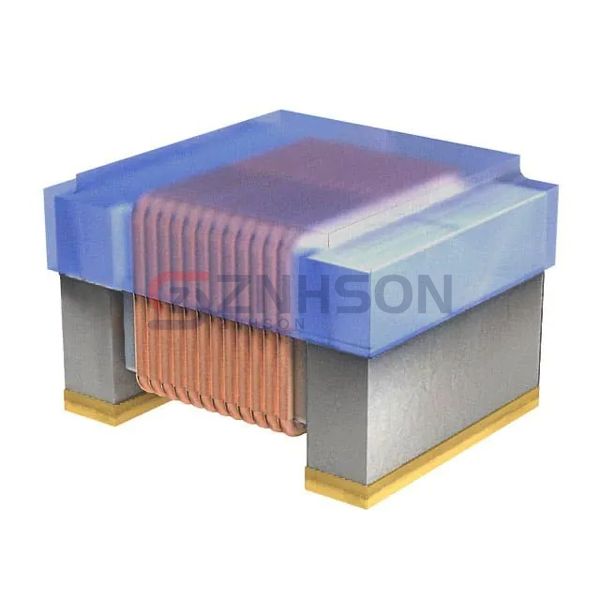

WB0805T22NSJ
CAL-CHIP ELECTRONICS, INC.
CAL-CHIP ELECTRONICS, INC.
WW IND 0805 22NH 5%
$0.08
Available to order
Reference Price (USD)
1+
$0.08500
500+
$0.08415
1000+
$0.0833
1500+
$0.08245
2000+
$0.0816
2500+
$0.08075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with WB0805T22NSJ Fixed Inductors from CAL-CHIP ELECTRONICS, INC., a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. WB0805T22NSJ ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ceramic
- Inductance: 22 nH
- Tolerance: ±5%
- Current Rating (Amps): 500 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 220mOhm Max
- Q @ Freq: 55 @ 500MHz
- Frequency - Self Resonant: 2.6GHz
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Inductance Frequency - Test: 250 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 0805 (2012 Metric)
- Supplier Device Package: 0805
- Size / Dimension: 0.090" L x 0.068" W (2.29mm x 1.73mm)
- Height - Seated (Max): 0.060" (1.52mm)
