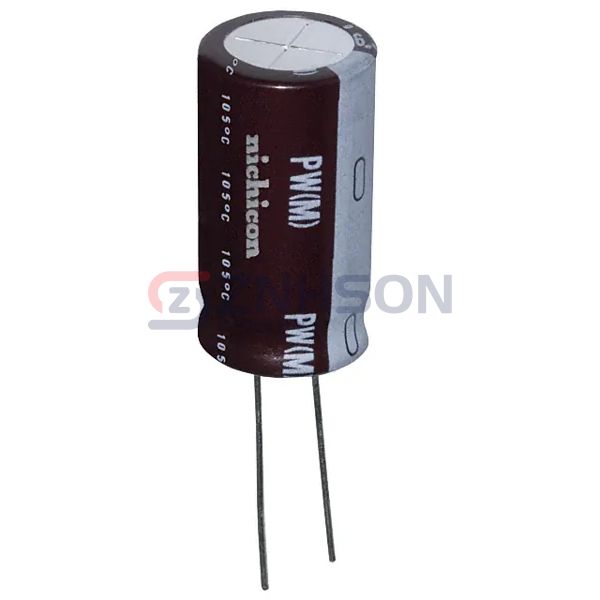

UPW1A682MHD
Nichicon
Nichicon
CAP ALUM 6800UF 20% 10V RADIAL
$2.55
Available to order
Reference Price (USD)
1+
$1.78000
10+
$1.43700
100+
$1.09750
500+
$0.83616
1,000+
$0.73164
2,500+
$0.71074
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior performance with UPW1A682MHD Aluminum Electrolytic Capacitors from Nichicon. These capacitors are designed to meet the highest industry standards, offering low leakage current, high voltage ratings, and excellent thermal stability. Ideal for medical devices, renewable energy systems, and military applications, UPW1A682MHD provides the reliability you need. Don't hesitate contact us now for more details and pricing options.
Specifications
- Product Status: Not For New Designs
- Capacitance: 6800 µF
- Tolerance: ±20%
- Voltage - Rated: 10 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 8000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 2.559 A @ 120 Hz
- Ripple Current @ High Frequency: 3.01 A @ 100 kHz
- Impedance: 18 mOhms
- Lead Spacing: 0.295" (7.50mm)
- Size / Dimension: 0.630" Dia (16.00mm)
- Height - Seated (Max): 1.240" (31.50mm)
- Surface Mount Land Size: -
- Mounting Type: Through Hole
- Package / Case: Radial, Can
