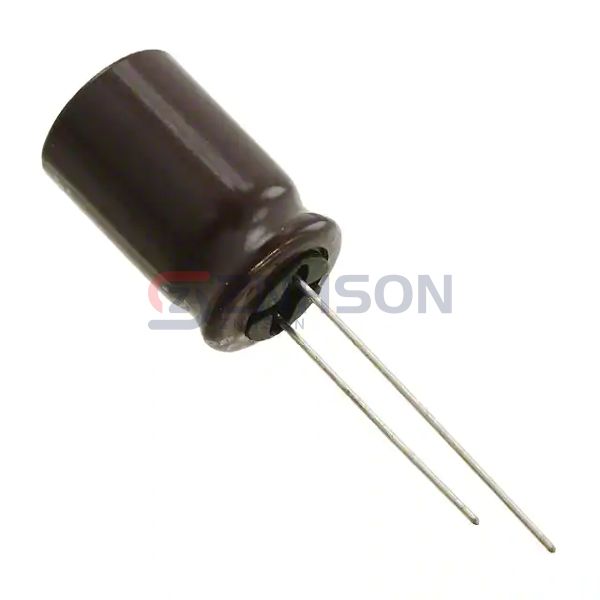

UPS1H471MHD
Nichicon
Nichicon
CAP ALUM 470UF 20% 50V RADIAL
$1.21
Available to order
Reference Price (USD)
1+
$0.67000
10+
$0.49100
100+
$0.33660
500+
$0.26650
1,000+
$0.22442
2,500+
$0.21039
5,000+
$0.19636
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior performance with UPS1H471MHD Aluminum Electrolytic Capacitors from Nichicon. These capacitors are designed to meet the highest industry standards, offering low leakage current, high voltage ratings, and excellent thermal stability. Ideal for medical devices, renewable energy systems, and military applications, UPS1H471MHD provides the reliability you need. Don't hesitate contact us now for more details and pricing options.
Specifications
- Product Status: Not For New Designs
- Capacitance: 470 µF
- Tolerance: ±20%
- Voltage - Rated: 50 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 3000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 781 mA @ 120 Hz
- Ripple Current @ High Frequency: 1.1 A @ 100 kHz
- Impedance: 130 mOhms
- Lead Spacing: 0.197" (5.00mm)
- Size / Dimension: 0.492" Dia (12.50mm)
- Height - Seated (Max): 0.787" (20.00mm)
- Surface Mount Land Size: -
- Mounting Type: Through Hole
- Package / Case: Radial, Can
