UP0339600L
Panasonic Electronic Components
Panasonic Electronic Components

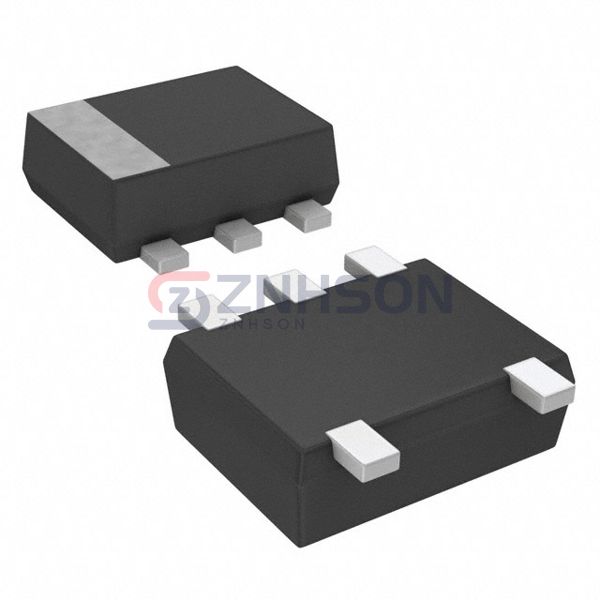

TRANS PREBIAS NPN/PNP SSMINI5
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Select Panasonic Electronic Components's UP0339600L for superior Pre-Biased Transistor Array performance in demanding electronic environments. These BJT arrays deliver time-saving solutions with their integrated resistor networks and matched transistor characteristics. Ideal for audio amplifiers, level shifters, and digital logic interfaces in commercial and industrial equipment. Performance highlights include wide operating voltage ranges, excellent linearity, and resistance to thermal runaway. As a trusted semiconductor supplier, Panasonic Electronic Components offers flexible packaging options and reliable delivery schedules. Whether you need samples or production quantities, begin by submitting your UP0339600L inquiry our team awaits your requirements!
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms, 22kOhms
- Resistor - Emitter Base (R2): 10kOhms, 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 35 @ 5mA, 10V / 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz, 80MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F2
