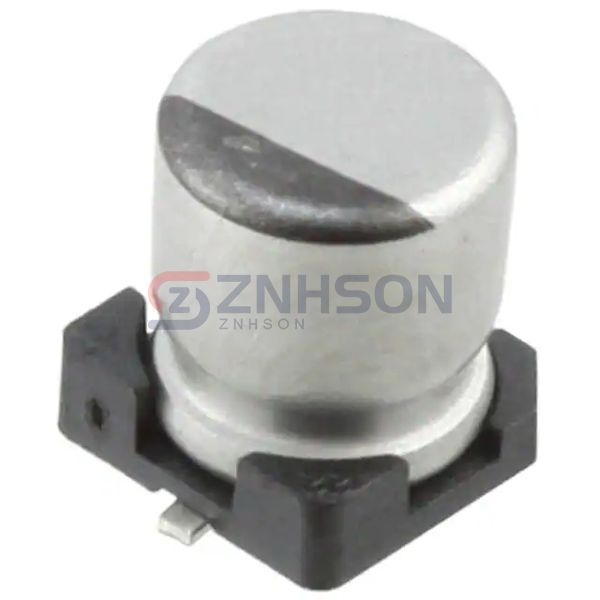

UCL1V100MCL1GS
Nichicon
Nichicon
CAP ALUM 10UF 20% 35V SMD
$0.53
Available to order
Reference Price (USD)
1,000+
$0.11286
2,000+
$0.10692
5,000+
$0.10098
10,000+
$0.09504
25,000+
$0.08910
50,000+
$0.08316
100,000+
$0.07722
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior performance with UCL1V100MCL1GS Aluminum Electrolytic Capacitors from Nichicon. These capacitors are designed to meet the highest industry standards, offering low leakage current, high voltage ratings, and excellent thermal stability. Ideal for medical devices, renewable energy systems, and military applications, UCL1V100MCL1GS provides the reliability you need. Don't hesitate contact us now for more details and pricing options.
Specifications
- Product Status: Active
- Capacitance: 10 µF
- Tolerance: ±20%
- Voltage - Rated: 35 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 2000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 120 mA @ 120 Hz
- Ripple Current @ High Frequency: 240 mA @ 100 kHz
- Impedance: 360 mOhms
- Lead Spacing: -
- Size / Dimension: 0.197" Dia (5.00mm)
- Height - Seated (Max): 0.228" (5.80mm)
- Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
