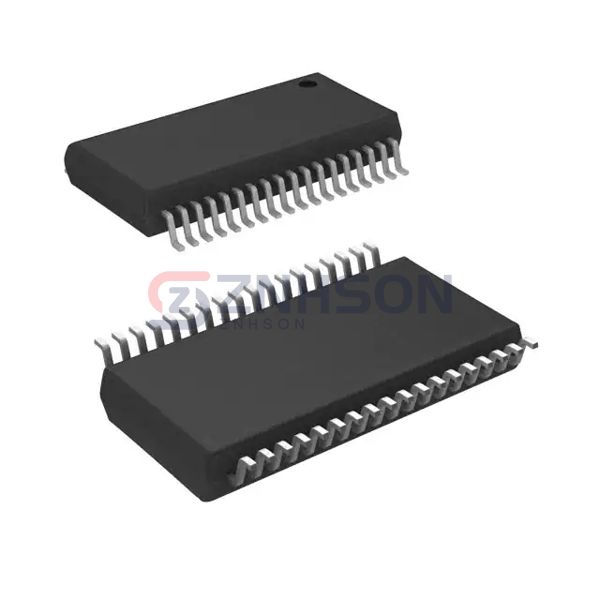

UCC5870QDWJQ1
Texas Instruments
Texas Instruments
IC ISOLATION
$9.13
Available to order
Reference Price (USD)
1+
$9.13280
500+
$9.041472
1000+
$8.950144
1500+
$8.858816
2000+
$8.767488
2500+
$8.67616
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize safety and performance with Texas Instruments UCC5870QDWJQ1 Gate Driver Isolators, the go-to solution for high-voltage isolation. These isolators boast ultra-low power consumption, high noise immunity, and long-term durability, making them ideal for electric vehicles, industrial automation, and aerospace applications. Elevate your project with our expertise inquire today!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 100kV/µs
- Propagation Delay tpLH / tpHL (Max): 150ns, 150ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 150ns, 150ns (Max)
- Current - Output High, Low: 30A, 30A
- Current - Peak Output: 30A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 36-BSSOP (0.295", 7.50mm Width)
- Supplier Device Package: 36-SSOP
- Approval Agency: -
