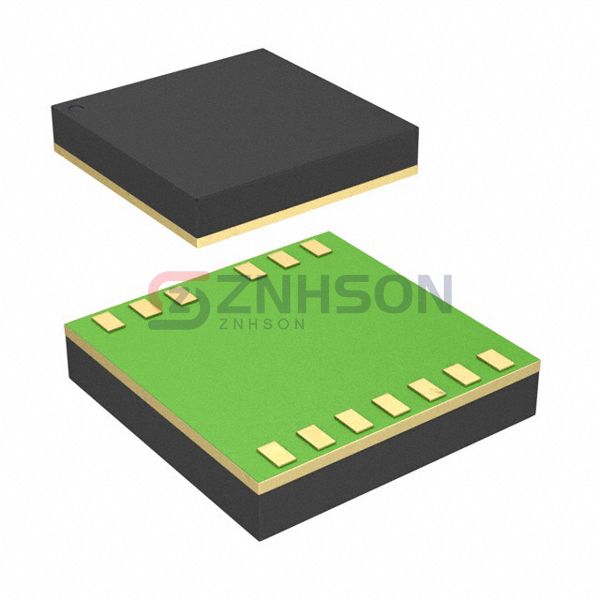

UCC20225AQNPLTQ1
Texas Instruments
Texas Instruments
IC POWER MANAGEMENT
$6.68
Available to order
Reference Price (USD)
1+
$6.68000
500+
$6.6132
1000+
$6.5464
1500+
$6.4796
2000+
$6.4128
2500+
$6.346
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with Texas Instruments UCC20225AQNPLTQ1 Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 2
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 100V/ns
- Propagation Delay tpLH / tpHL (Max): 30ns, 30ns
- Pulse Width Distortion (Max): 6ns
- Rise / Fall Time (Typ): 6ns, 7ns
- Current - Output High, Low: 4A, 6A
- Current - Peak Output: 4A, 6A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 6.5V ~ 25V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 13-VFLGA
- Supplier Device Package: 13-VLGA (5x5)
- Approval Agency: CQC, UL, VDE
