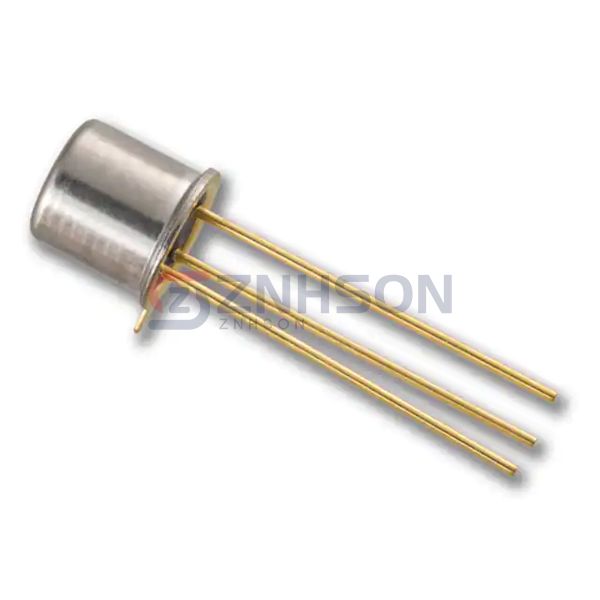

U309 TO-18 3L
Linear Integrated Systems, Inc.
Linear Integrated Systems, Inc.
WIDEBAND, HIGH GAIN, SINGLE, N-
$4.81
Available to order
Reference Price (USD)
1+
$4.81000
500+
$4.7619
1000+
$4.7138
1500+
$4.6657
2000+
$4.6176
2500+
$4.5695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The U309 TO-18 3L series represents Linear Integrated Systems, Inc.'s commitment to excellence in JFET technology, offering depletion-mode transistors with industry-leading Yfs stability. Designed for long-term reliability in telecom filters and voltage-controlled resistors, these devices maintain parameters within 5% over 10,000 hours. Features include gold-bonded leads and hermetically sealed packages for aerospace applications. Download the reliability report or request cross-reference assistance our technical team provides full lifecycle support.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Voltage - Breakdown (V(BR)GSS): 25 V
- Drain to Source Voltage (Vdss): -
- Current - Drain (Idss) @ Vds (Vgs=0): 12 mA @ 10 V
- Current Drain (Id) - Max: -
- Voltage - Cutoff (VGS off) @ Id: 1 V @ 1 nA
- Input Capacitance (Ciss) (Max) @ Vds: 4pF @ 10V
- Resistance - RDS(On): 35 Ohms
- Power - Max: 500 mW
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-206AA, TO-18-3 Metal Can
- Supplier Device Package: TO-18-3
