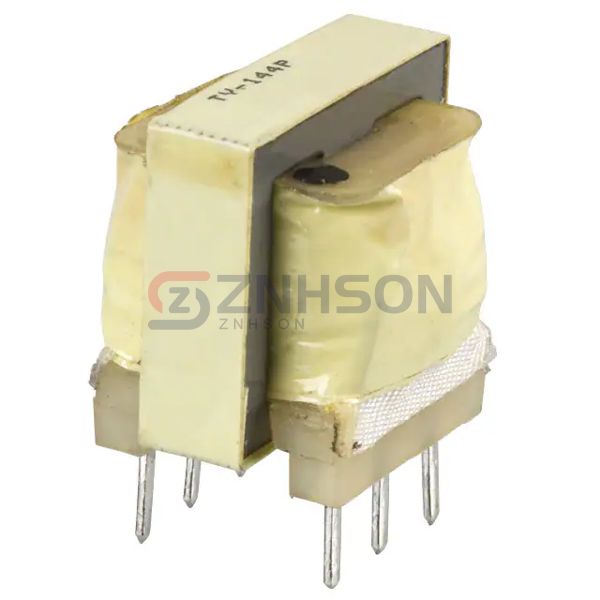

TY-144P
Triad Magnetics
Triad Magnetics
TRANSF 15K AUDIO CTAP/15K CTAP
$6.36
Available to order
Reference Price (USD)
1+
$5.88000
10+
$4.47100
25+
$4.35360
50+
$4.00060
100+
$3.76530
250+
$3.64760
500+
$3.52996
1,000+
$3.41229
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience unparalleled audio precision with Triad Magnetics TY-144P Audio Transformers, built to meet the demands of modern audio systems. Whether for commercial or personal use, these transformers offer superior isolation and signal fidelity. Triad Magnetics is synonymous with quality and innovation. Send us your inquiry today and discover the perfect solution for your audio needs.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 15kCT
- Impedance - Secondary (Ohms): 15kCT
- DC Resistance (DCR) - Primary: 1.18kOhm
- DC Resistance (DCR) - Secondary: 1.6kOhm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 200Hz ~ 15kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1500V
- Insertion Loss: 1.5dB
- Return Loss: 26dB
- Power Level: 100mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.812" L x 0.700" W (20.62mm x 17.78mm)
- Height - Seated (Max): 0.740" (18.80mm)
- Termination Style: PC Pin
