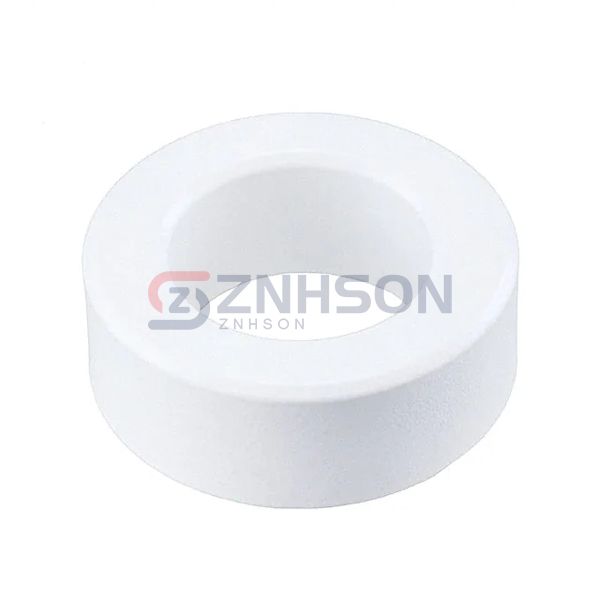

TX36/23/15-3E27-M7
Ferroxcube
Ferroxcube
FERRITE CORES ROUND
$3.25
Available to order
Reference Price (USD)
1+
$3.18000
10+
$2.72900
25+
$2.04680
50+
$1.99000
100+
$1.76250
250+
$1.64884
500+
$1.53512
1,000+
$1.42140
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with Ferroxcube TX36/23/15-3E27-M7 Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: Toroid
- Supplier Device Package: TX 36 x 23 x 15
- Material: 3E27
- Diameter: 1.463" (37.15mm)
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): 7000
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.919
- Effective Length (le) mm: 89.7
- Effective Area (Ae) mm²: 97.5
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 8740
- Finish: Epoxy
- Height: 0.630" (16.00mm)
- Length: -
- Width: -
