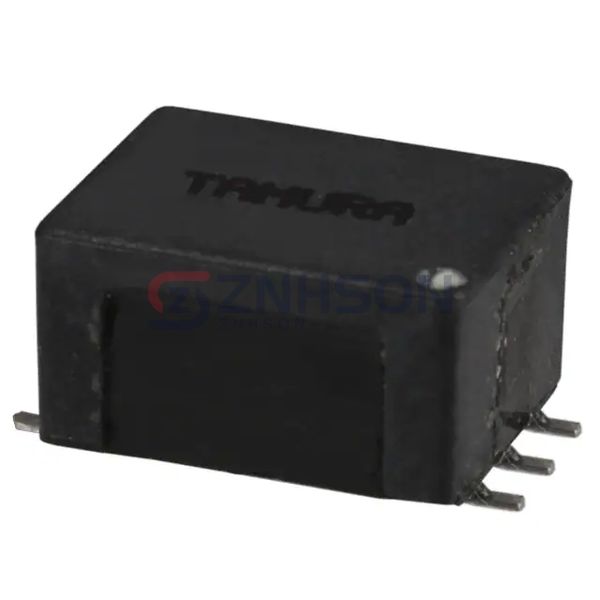

TTC-5024
Tamura
Tamura
TRANSFORMER MODEM 600:330OHM SMD
$2.28
Available to order
Reference Price (USD)
400+
$2.42550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Tamura TTC-5024 Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Tamura for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 330
- DC Resistance (DCR) - Primary: 150Ohm
- DC Resistance (DCR) - Secondary: 150Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 200Hz ~ 4kHz
- Frequency Response: ±0.2dB
- Voltage - Isolation: 1875VRMS @ 1 Second
- Insertion Loss: 3dB Max @ 2kHz
- Return Loss: 16dB Min @ 200Hz ~ 4kHz
- Power Level: -
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: UL60950, EN60950
- Mounting Type: Surface Mount
- Size / Dimension: 0.378" L x 0.492" W (9.60mm x 12.50mm)
- Height - Seated (Max): 0.299" (7.60mm)
- Termination Style: Flat Lead
