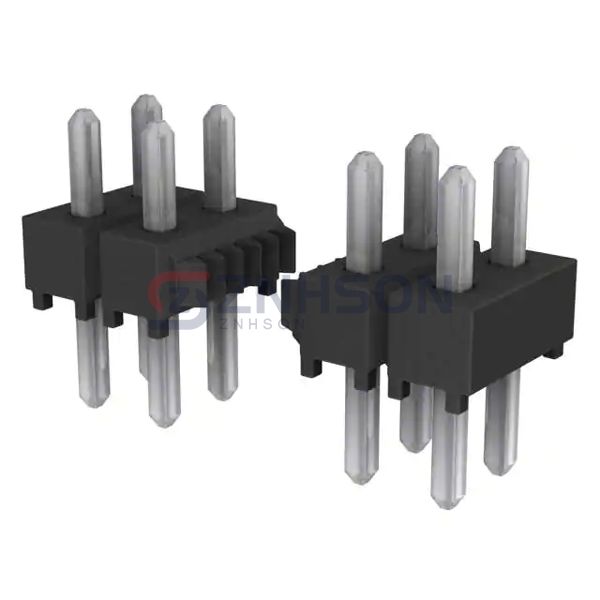

TSW-148-06-T-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 96POS 2.54MM
$8.59
Available to order
Reference Price (USD)
1+
$8.59000
500+
$8.5041
1000+
$8.4182
1500+
$8.3323
2000+
$8.2464
2500+
$8.1605
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-148-06-T-D Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 96
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.095" (2.41mm)
- Overall Contact Length: 0.300" (7.62mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
852-40-092-20-001000
TE Connectivity AMP Connectors
292173-6
Samtec Inc.
TSW-139-14-T-D
Samtec Inc.
ZSS-110-01-L-D-500
TE Connectivity AMP Connectors
9-146250-0-23
Adam Tech
BHR-14-VUA
Samtec Inc.
MTMM-105-13-G-S-495

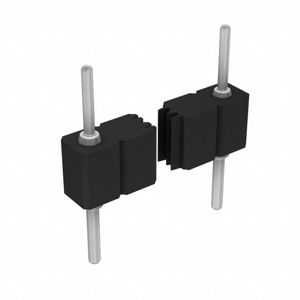

Preci-Dip
350-80-123-01-609101

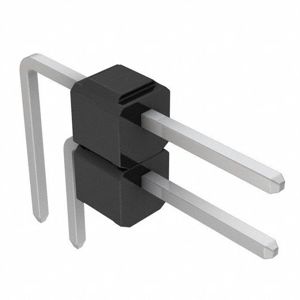

3M
