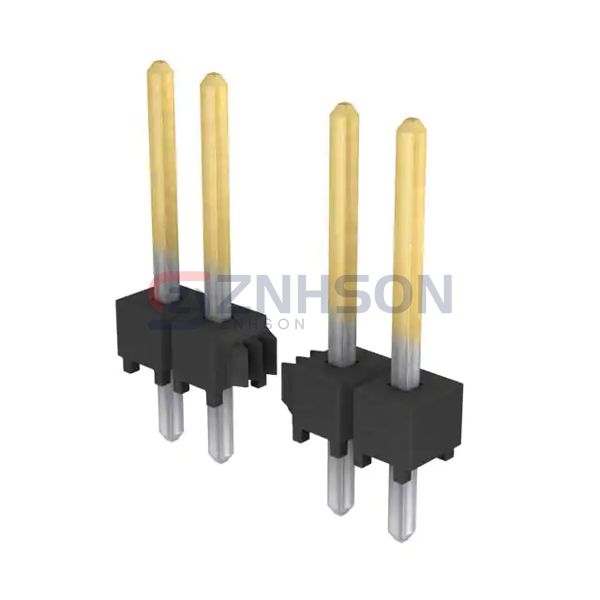

TSW-147-14-S-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 47POS 2.54MM
$5.89
Available to order
Reference Price (USD)
1+
$5.39000
10+
$5.17100
25+
$4.74000
50+
$4.52440
100+
$4.30900
250+
$3.77036
500+
$3.66262
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-147-14-S-S Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 47
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
499-10-242-10-009101
Samtec Inc.
TSM-126-01-L-DH-LC
Amphenol ICC (FCI)
77311-118-21LF
Samtec Inc.
TSM-107-02-T-SH-LC
Samtec Inc.
HTSW-112-08-L-S-LA
Samtec Inc.
TMM-132-01-F-S
Molex
2157603004
Samtec Inc.

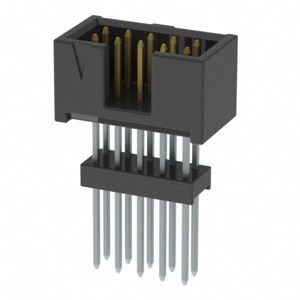

ZSS-105-05-S-D-640
