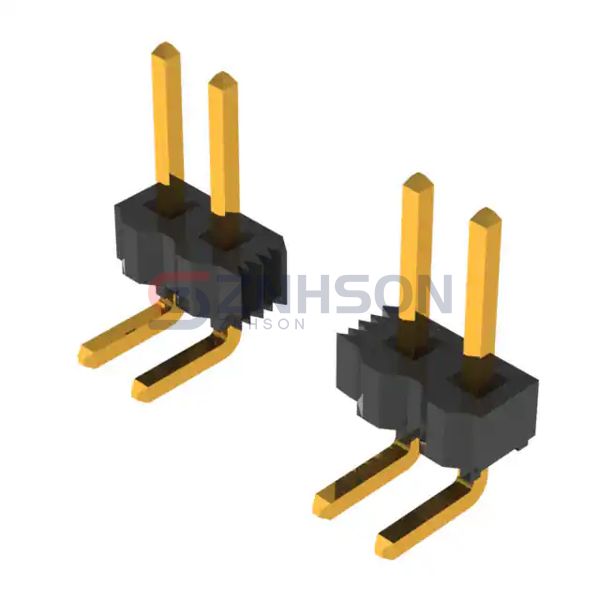

TSW-115-08-G-S-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 15POS 2.54MM
$1.70
Available to order
Reference Price (USD)
1+
$1.56000
10+
$1.41100
25+
$1.32480
50+
$1.26720
100+
$1.20960
250+
$1.09440
500+
$1.00800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-115-08-G-S-RA Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 15
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.119" (3.02mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
