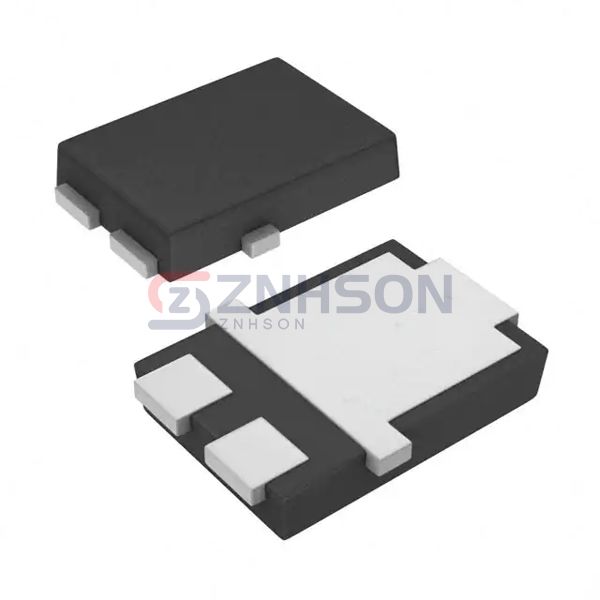

TSUP5M60SH S1G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
5A, 60V, SCHOTTKY RECTIFIER
$0.65
Available to order
Reference Price (USD)
1+
$0.65250
500+
$0.645975
1000+
$0.63945
1500+
$0.632925
2000+
$0.6264
2500+
$0.619875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level performance with Taiwan Semiconductor Corporation's TSUP5M60SH S1G Single Rectifier Diodes, designed for high-power applications. These diodes provide excellent rectification efficiency, making them suitable for solar panels, electric vehicles, and UPS systems. Key features include high current density, fast recovery, and superior thermal management. Taiwan Semiconductor Corporation stands by its products with rigorous testing and quality assurance. Need assistance? Contact our sales team now!
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 5A (DC)
- Voltage - Forward (Vf) (Max) @ If: 640 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 200 µA @ 60 V
- Capacitance @ Vr, F: 346pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: SMPC4.6U
- Operating Temperature - Junction: -55°C ~ 175°C
