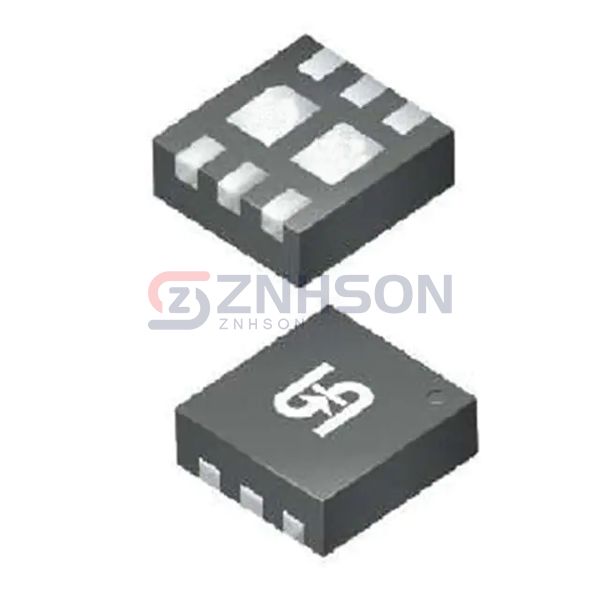

TSM2537CQ RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N/P-CH 20V 11.6A/9A 6TDFN
$1.50
Available to order
Reference Price (USD)
3,000+
$0.15035
6,000+
$0.14065
15,000+
$0.13580
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic circuits with Taiwan Semiconductor Corporation s TSM2537CQ RFG, a key player in the Discrete Semiconductor Products category for Transistors - FETs, MOSFETs - Arrays. These components are celebrated for their high efficiency, compact design, and long-lasting performance. Key features include fast switching, low threshold voltage, and superior thermal conductivity. Ideal for applications in power converters, RF amplifiers, and battery management systems. Reach out to us today to explore how TSM2537CQ RFG can elevate your design and operational efficiency.
Specifications
- Product Status: Active
- FET Type: N and P-Channel
- FET Feature: Logic Level Gate, 1.8V Drive
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 11.6A (Tc), 9A (Tc)
- Rds On (Max) @ Id, Vgs: 30mOhm @ 6.4A, 4.5V, 55mOhm @ 5A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 9.1nC @ 4.5V, 9.8nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 677pF @ 10V, 744pF @ 10V
- Power - Max: 6.25W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-VDFN Exposed Pad
- Supplier Device Package: 6-TDFN (2x2)
