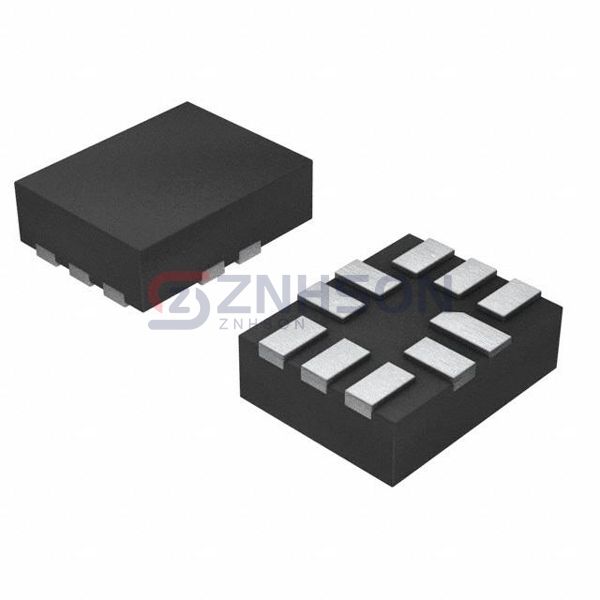

TS3A5223RSWR
Texas Instruments
Texas Instruments
IC SWITCH 2 X SPDT 10UQFN
$0.75
Available to order
Reference Price (USD)
3,000+
$0.26400
6,000+
$0.24640
15,000+
$0.23760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless integration with Texas Instruments TS3A5223RSWR Interface ICs, designed for Analog Switches, Multiplexers, and Demultiplexers applications. These ICs feature compact designs, low voltage operation, and robust ESD protection, ideal for portable electronics and embedded systems. Trust Texas Instruments for components that deliver consistent performance. Contact our team today to request samples or discuss bulk purchasing options.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 600mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 70ns, 75ns
- -3db Bandwidth: 80MHz
- Charge Injection: 40pC
- Channel Capacitance (CS(off), CD(off)): 50pF
- Current - Leakage (IS(off)) (Max): 5nA
- Crosstalk: -75dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (1.8x1.4)
Related Products
Analog Devices Inc.
ADG211AKRZ
Analog Devices Inc.
ADG721BRMZ-REEL
Analog Devices Inc.
ADG612YRUZ-REEL7
NXP USA Inc.
74HCT4051D/S206118
Harris Corporation
5962-9064001CA
Analog Devices Inc.
ADG711BRZ
Intersil

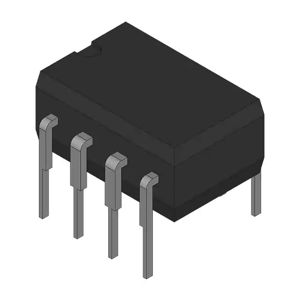

ISL84544IP
Analog Devices Inc./Maxim Integrated

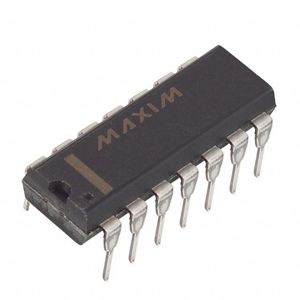

DG302ACJ+
Texas Instruments

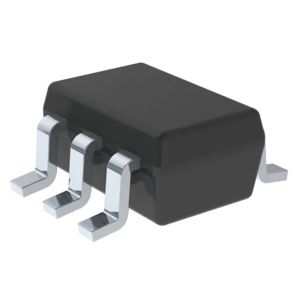

TS5A3160DCKT
