TS-105-T-A
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 5POS 2.54MM
$0.82
Available to order
Reference Price (USD)
1+
$0.73000
10+
$0.68100
25+
$0.61240
50+
$0.54460
100+
$0.52180
250+
$0.47644
500+
$0.45376
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with TS-105-T-A Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.166" (4.22mm)
- Contact Length - Post: 0.156" (3.96mm)
- Overall Contact Length: 0.477" (12.12mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
800-80-051-20-004101
Samtec Inc.
ZSS-115-09-T-D-1340
Samtec Inc.
TMM-110-05-SM-D-SM-P
Samtec Inc.

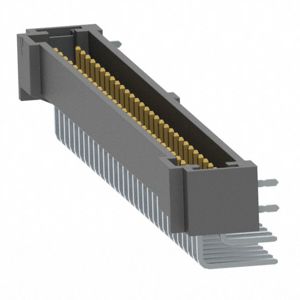

T2M-130-01-L-D-RA-WT
Samtec Inc.
FTSH-110-04-F-DH-A-C-TR
Samtec Inc.

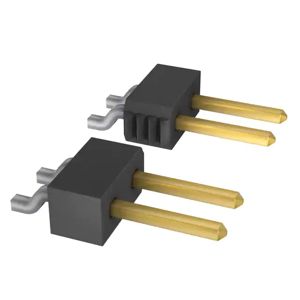

TSM-120-01-F-SH-K
Samtec Inc.

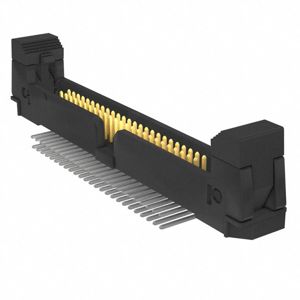

EHF-125-01-LM-D-RA
Samtec Inc.

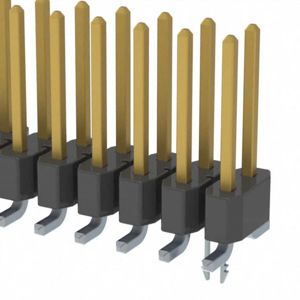

TSM-112-02-L-DV-LC
Samtec Inc.

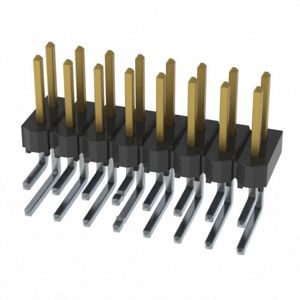

HTSW-108-08-F-D-LA
