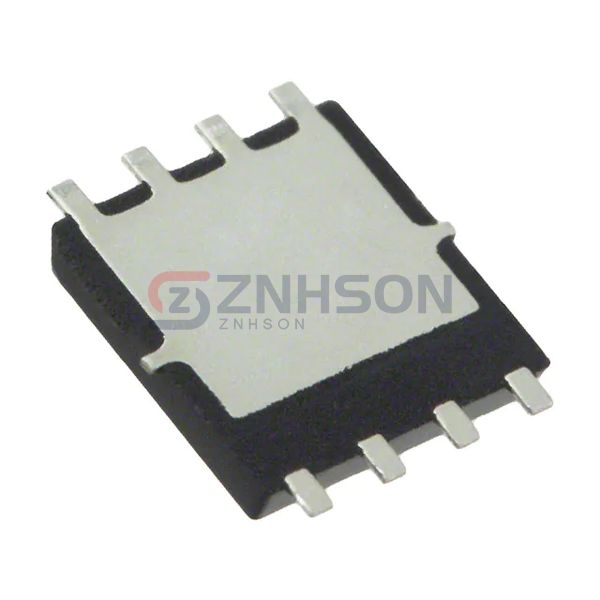

TPH7R506NH,L1Q
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 60V 22A 8SOP
$1.54
Available to order
Reference Price (USD)
5,000+
$0.59500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with TPH7R506NH,L1Q, a reliable Transistors - FETs, MOSFETs - Single by Toshiba Semiconductor and Storage. As a leader in Discrete Semiconductor Products, we offer components with low gate charge, high breakdown voltage, and excellent switching performance. Whether for aerospace, robotics, or energy systems, TPH7R506NH,L1Q meets the highest standards. Contact our team today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 4V @ 300µA
- Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2320 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 1.6W (Ta), 45W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOP Advance (5x5)
- Package / Case: 8-PowerVDFN
