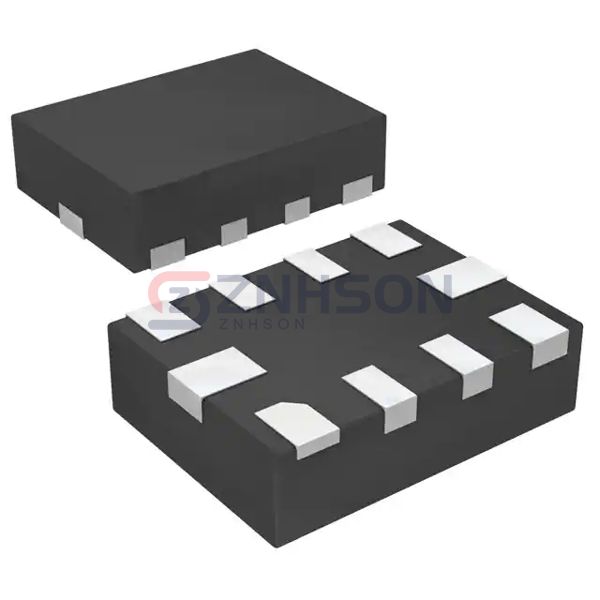

TMUX136RSER
Texas Instruments
Texas Instruments
IC SWITCH SPDT DUAL 10UQFN
$1.13
Available to order
Reference Price (USD)
3,000+
$0.47270
6,000+
$0.44988
15,000+
$0.43358
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Texas Instruments TMUX136RSER series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Texas Instruments's expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 9.5Ohm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 2.3V ~ 4.8V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 6.1GHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 1.6pF, 1.6pF
- Current - Leakage (IS(off)) (Max): 2µA
- Crosstalk: -37dB @ 240MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (2.0x1.5)
