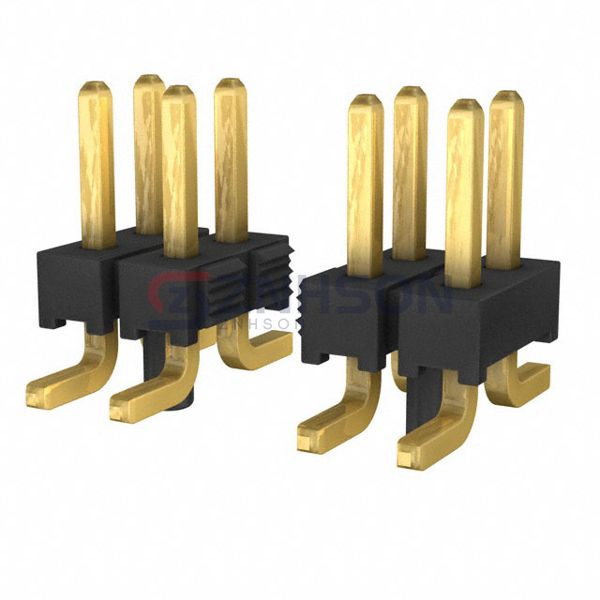

TMM-109-05-G-D-SM-A-P
Samtec Inc.
Samtec Inc.
2MM TERMINAL STRIP
$6.06
Available to order
Reference Price (USD)
1+
$3.83000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with TMM-109-05-G-D-SM-A-P Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.065" (1.65mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.2A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
87224-3
Mill-Max Manufacturing Corp.
435-40-238-00-160000
Samtec Inc.
TFM-107-01-L-S-WT
Samtec Inc.
TMM-106-02-T-S
Molex
0878310420

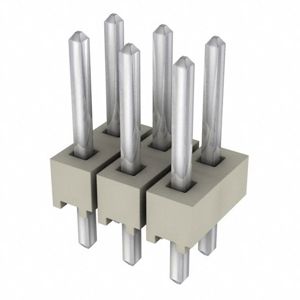

Samtec Inc.
HTSW-103-07-T-D
Preci-Dip
892-70-006-20-001101

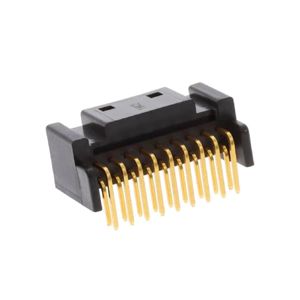

Hirose Electric Co Ltd
DF51K-18DP-2DS(805)

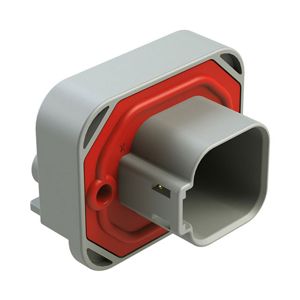

Amphenol Sine Systems Corp
