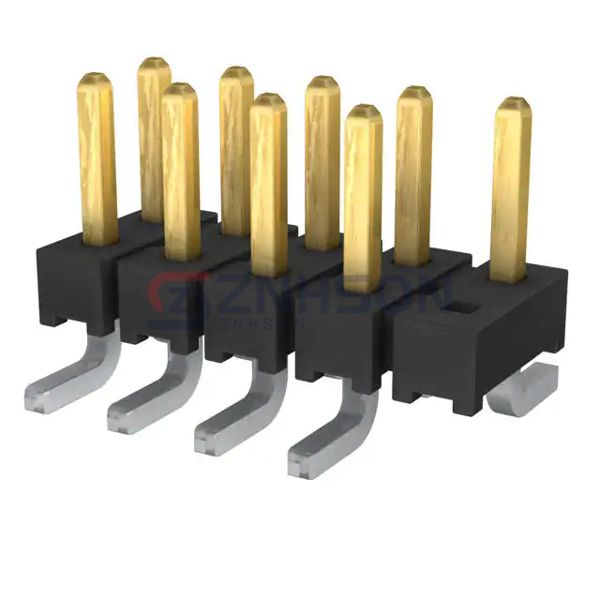

TMM-105-01-S-D-SM-009-P-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 10POS 2MM
$4.33
Available to order
Reference Price (USD)
125+
$2.40000
250+
$2.10000
625+
$2.04000
875+
$1.86000
1,250+
$1.74000
3,125+
$1.62000
6,250+
$1.56000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TMM-105-01-S-D-SM-009-P-TR Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: 9
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.2A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-826646-6
Preci-Dip
800-10-034-40-001101
TE Connectivity AMP Connectors
6-1971845-5
Samtec Inc.
TMM-110-06-G-D-SM
Samtec Inc.
HTSW-136-14-G-S
Samtec Inc.
TSM-133-01-S-DH

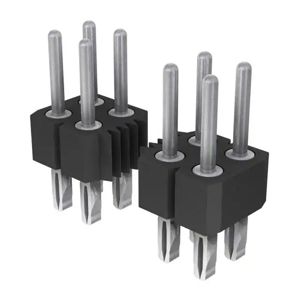

Preci-Dip
802-80-044-65-001101
Samtec Inc.
FTSH-112-01-LM-DH

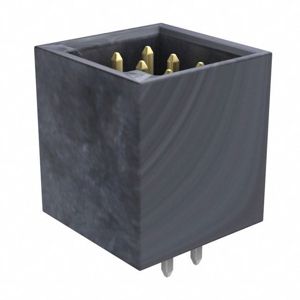

Molex
