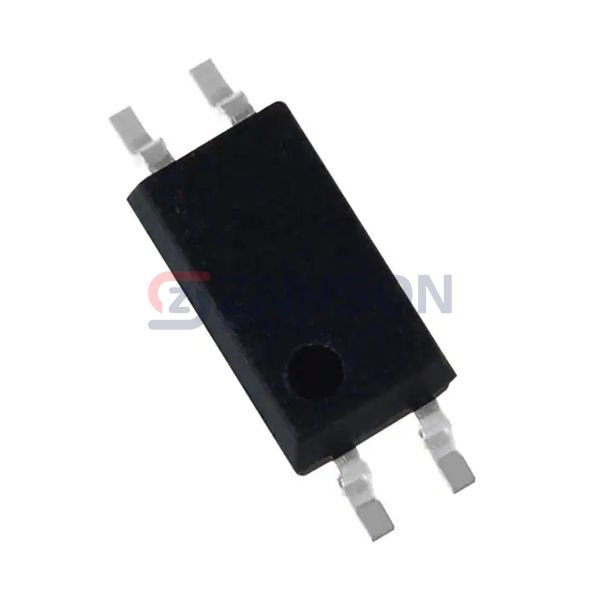

TLX9291A(GBTPL,F
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
TR COUPLER; SO4; AECQ; ROHS; T&R
$2.81
Available to order
Reference Price (USD)
1+
$2.81000
500+
$2.7819
1000+
$2.7538
1500+
$2.7257
2000+
$2.6976
2500+
$2.6695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Toshiba Semiconductor and Storage presents the TLX9291A(GBTPL,F Optoisolators - Transistor, Photovoltaic Output, designed for precision and reliability in harsh environments. These isolators are commonly used in robotics, HVAC systems, and power electronics, providing excellent noise immunity and thermal stability. Trusted by engineers globally, Toshiba Semiconductor and Storage ensures top-tier quality and performance. Interested? Send us your inquiry and discover the perfect fit for your application!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 100% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): 5µs, 5µs
- Rise / Fall Time (Typ): 3µs, 5µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.27V
- Current - DC Forward (If) (Max): 30 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 4-SOIC (0.179", 4.55mm Width)
- Supplier Device Package: 4-SO
