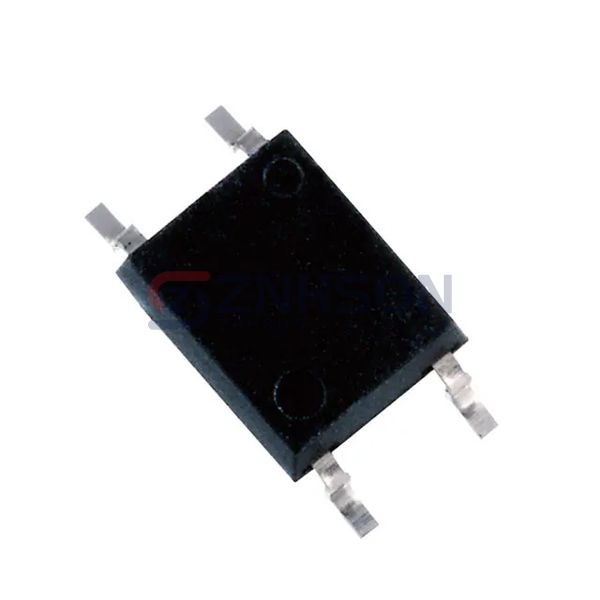

TLX9185A(GBTPL,F
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
TR COUPLER; 4-PIN SO6; AECQ; ROH
$2.81
Available to order
Reference Price (USD)
1+
$2.81000
500+
$2.7819
1000+
$2.7538
1500+
$2.7257
2000+
$2.6976
2500+
$2.6695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure optimal performance in your electronic designs with TLX9185A(GBTPL,F Optoisolators from Toshiba Semiconductor and Storage. Featuring Photovoltaic Output, these isolators are ideal for applications in automotive, IoT, and smart grid systems, offering high-speed signal transmission and robust isolation. Backed by Toshiba Semiconductor and Storage's expertise, these components are a smart investment for any project. Contact us today to discuss your requirements and receive a tailored quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 100% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): 5µs, 5µs
- Rise / Fall Time (Typ): 3µs, 5µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.27V
- Current - DC Forward (If) (Max): 30 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.173", 4.40mm Width), 4 Leads
- Supplier Device Package: 6-SOP
Related Products
Broadcom Limited
HCPL-5761#200
Toshiba Semiconductor and Storage
TLP184(TPR,SE
Broadcom Limited
6N136-320E
Everlight Electronics Co Ltd
H11A2-V
onsemi
H11A1SR2VM
Toshiba Semiconductor and Storage
TLP290(SE
Everlight Electronics Co Ltd
4N26S(TB)
Broadcom Limited
HCPL-070A-060E
Everlight Electronics Co Ltd

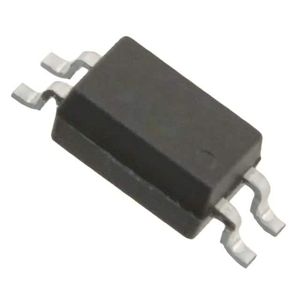

EL3H7(E)-G
