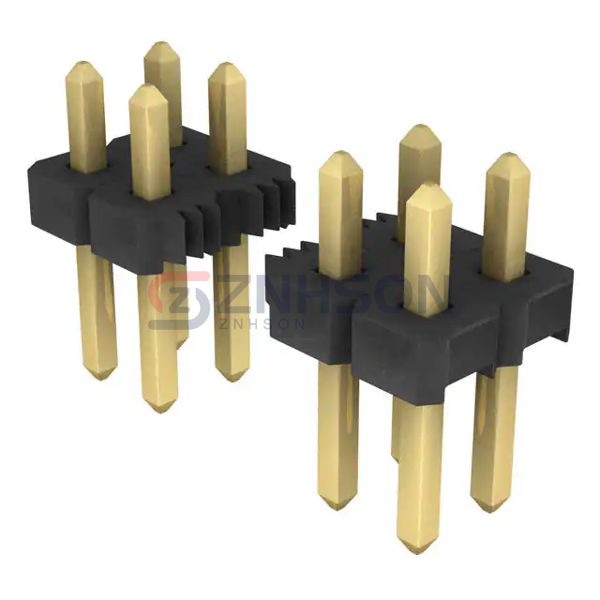

TLW-120-05-G-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 40POS 2.54MM
$7.18
Available to order
Reference Price (USD)
1+
$6.66000
10+
$6.37900
25+
$5.82400
50+
$5.54660
100+
$5.26930
250+
$4.71468
500+
$4.43732
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TLW-120-05-G-D Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.170" (4.32mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.060" (1.52mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: -
