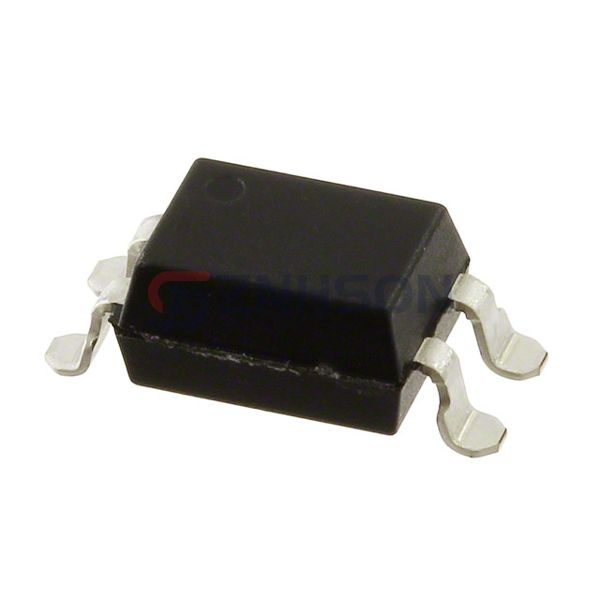

TLP785(D4GL-T6,F
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
X36 PB-F TRANSISTOR OPTOCOUPLER
$0.20
Available to order
Reference Price (USD)
4,000+
$0.21615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior signal isolation with Toshiba Semiconductor and Storage's TLP785(D4GL-T6,F Optoisolators - Transistor, Photovoltaic Output. These components are ideal for data acquisition, process control, and safety systems, offering fast response times and high insulation resistance. With Toshiba Semiconductor and Storage's commitment to innovation, you can expect cutting-edge solutions for your technical challenges. Reach out now to request a quote and elevate your designs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): 3µs, 3µs
- Rise / Fall Time (Typ): 2µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.15V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SMD
Related Products
Vishay Semiconductor Opto Division
IL300-EF-X017T
Fairchild Semiconductor
MOC8107
onsemi
FODM217C
Broadcom Limited
HCPL-181-00DE
Vishay Semiconductor Opto Division
ILQ621-X006
Vishay Semiconductor Opto Division
SFH615A-4X009
Renesas Electronics America Inc
PS8802-2-V-F3-AX
Everlight Electronics Co Ltd
EL205-V
Vishay Semiconductor Opto Division

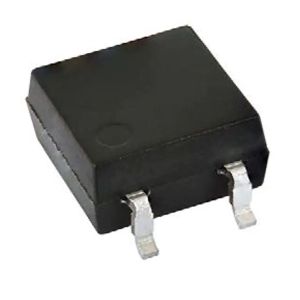

VOMA618A-4X001T
