TLP785(D4-GR,F
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
X36 PB-F TRANSISTOR COUPLER VDE
$0.22
Available to order
Reference Price (USD)
100+
$0.30800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior signal isolation with Toshiba Semiconductor and Storage's TLP785(D4-GR,F Optoisolators - Transistor, Photovoltaic Output. These components are ideal for data acquisition, process control, and safety systems, offering fast response times and high insulation resistance. With Toshiba Semiconductor and Storage's commitment to innovation, you can expect cutting-edge solutions for your technical challenges. Reach out now to request a quote and elevate your designs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): 3µs, 3µs
- Rise / Fall Time (Typ): 2µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.15V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.300", 7.62mm)
- Supplier Device Package: 4-DIP
Related Products
Vishay Semiconductor Opto Division
SFH6106-3X001
Fairchild Semiconductor
H11A5M
Fairchild Semiconductor
MOC206R1M
Everlight Electronics Co Ltd
CNY17-3M
IXYS Integrated Circuits Division
LDA101
Renesas Electronics America Inc
PS2911-1-V-L-AX
Vishay Semiconductor Opto Division
CNY65AYST
onsemi
CNY171SR2M
Vishay Semiconductor Opto Division

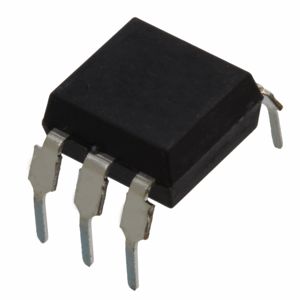

4N37-X006
