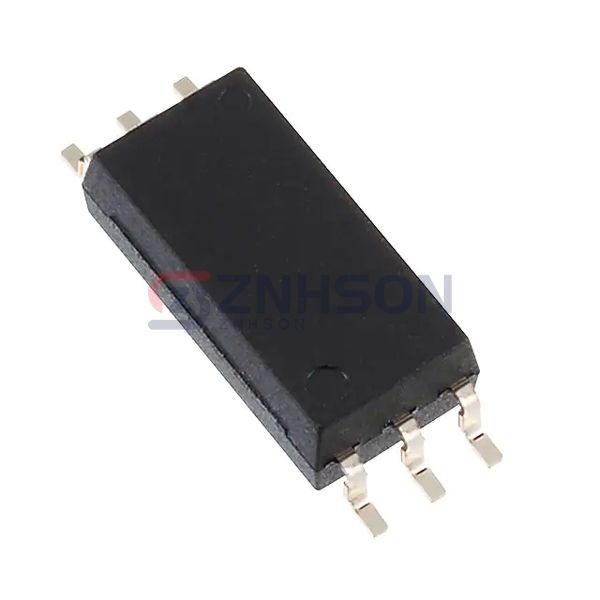

TLP2767(E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
HIGH SPEED LOGIC OUTPUT OPTOCOUP
$1.33
Available to order
Reference Price (USD)
125+
$1.60600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Toshiba Semiconductor and Storage TLP2767(E Optoisolators - Logic Output provide exceptional electrical isolation for your critical circuits. Featuring fast response times, high isolation voltage, and compact design, these optoisolators are suited for applications in renewable energy, automotive electronics, and consumer devices. Enhance your project's safety and efficiency. Get in touch for pricing details!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Input Type: AC, DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 50MBd
- Propagation Delay tpLH / tpHL (Max): 20ns, 20ns
- Rise / Fall Time (Typ): 2ns, 1ns
- Voltage - Forward (Vf) (Typ): 2.1V (Max)
- Current - DC Forward (If) (Max): 15mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 6-SO
