TLP2703(TP,E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISO 5KV DARLINGTON SO6L
$1.46
Available to order
Reference Price (USD)
1,500+
$0.55440
3,000+
$0.52668
7,500+
$0.51480
10,500+
$0.49500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's efficiency with TLP2703(TP,E Optoisolators by Toshiba Semiconductor and Storage, designed for Photovoltaic Output applications. These isolators are perfect for isolating digital signals, protecting microcontrollers, and ensuring safe operation in high-voltage environments. Suitable for consumer electronics, aerospace, and defense applications, they deliver consistent performance under extreme conditions. Get started today contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 900% @ 500µA
- Current Transfer Ratio (Max): 8000% @ 500µA
- Turn On / Turn Off Time (Typ): 330ns, 2.5µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Darlington
- Voltage - Output (Max): 18V
- Current - Output / Channel: 80mA
- Voltage - Forward (Vf) (Typ): 1.47V
- Current - DC Forward (If) (Max): 20 mA
- Vce Saturation (Max): -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 6-SO
Related Products
Vishay Semiconductor Opto Division
VO615A-8X001
Everlight Electronics Co Ltd
ELD217

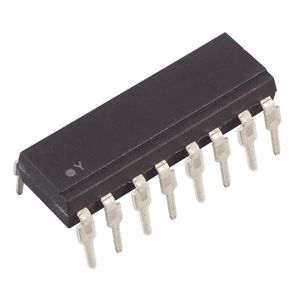

Lite-On Inc.
LTV-847M

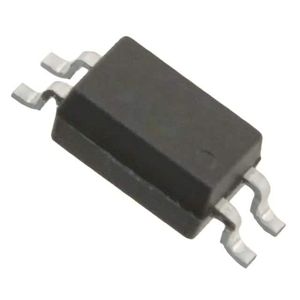

Vishay Semiconductor Opto Division
VOS615A-3T
Vishay Semiconductor Opto Division
VOM617A-7X001T
Fairchild Semiconductor
CNY17F1VM

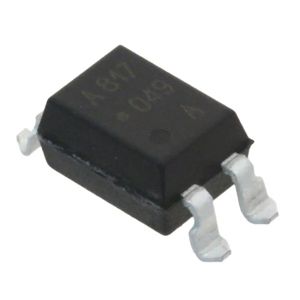

Broadcom Limited
HCPL-814-500E
Everlight Electronics Co Ltd
4N25S1(TB)

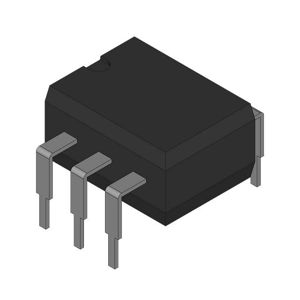

Fairchild Semiconductor
MCT210SD

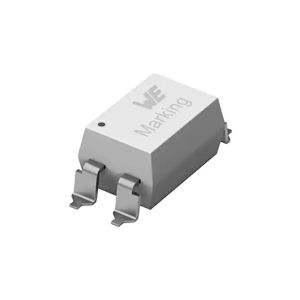

Würth Elektronik
