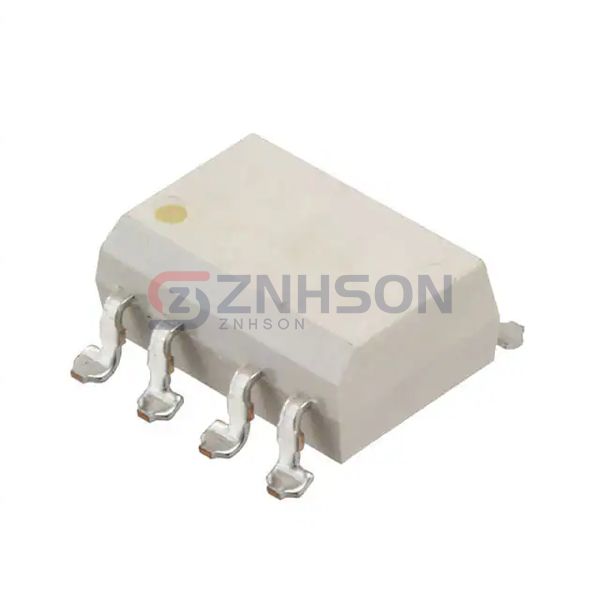

TLP2631(LF5,F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
X36 PB PHOTOCOUPLER SMD BULK JAP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure flawless signal isolation with Toshiba Semiconductor and Storage TLP2631(LF5,F) Optoisolators - Logic Output. These devices boast high noise immunity, low forward current, and long-term durability, making them a top choice for industrial control systems, PLCs, and instrumentation. Rely on Toshiba Semiconductor and Storage's expertise for your isolation needs. Submit your inquiry today!
Specifications
- Product Status: Obsolete
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 1kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 16 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Voltage - Forward (Vf) (Typ): 1.65V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-SMD
Related Products
CEL
PS9114-F3-A
Broadcom Limited
HCPL-0720#060
Broadcom Limited
HCPL-7611#500
CEL
PS9687L2-A
Toshiba Semiconductor and Storage
TLP250HF(TP4,F)
Toshiba Semiconductor and Storage
TLP2166A(F)
onsemi
H11L1300
Broadcom Limited
HCPL-263L-060
QT Brightek (QTB)

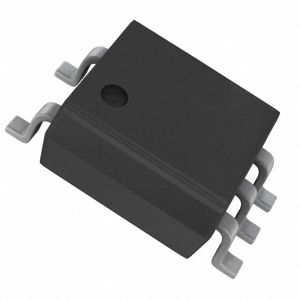

QTM611T1
