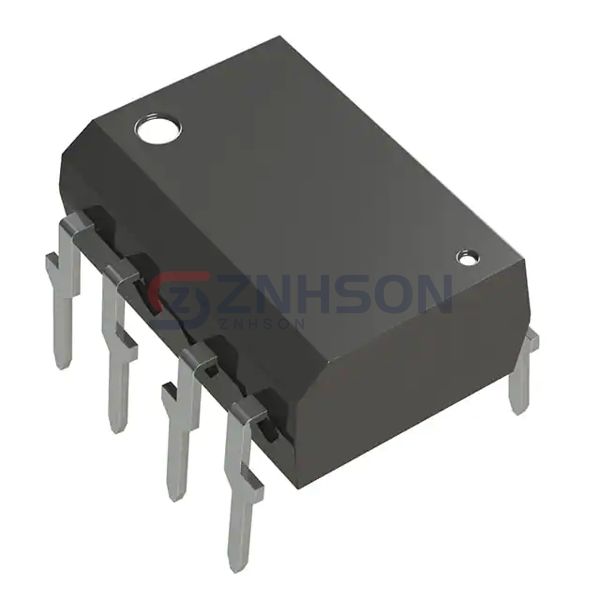

TLP2631(F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISO 2.5KV 2CH OPEN COLL 8DIP
$0.00
Available to order
Reference Price (USD)
1+
$2.54000
10+
$2.25100
50+
$1.66980
100+
$1.45200
250+
$1.30680
500+
$1.16160
1,000+
$0.99825
2,500+
$0.94380
5,000+
$0.90750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Toshiba Semiconductor and Storage TLP2631(F) Optoisolators - Logic Output, offering superior isolation and signal integrity. With features like low power consumption, high reliability, and wide operating temperature range, these optoisolators are perfect for use in power supplies, motor controls, and data acquisition systems. Trust Toshiba Semiconductor and Storage for top-tier performance. Request a sample or inquire now!
Specifications
- Product Status: Obsolete
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 1kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 16 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Voltage - Forward (Vf) (Typ): 1.65V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
Related Products
CEL
PS9614-A
onsemi
H11L1FR2M
onsemi
MOC5007SR2M
Vishay Semiconductor Opto Division
SFH6700-X009T
onsemi
74OL6000S
onsemi
74OL60003S
Broadcom Limited
HCPL-4506#560
Broadcom Limited
HCPL-260L-520
onsemi

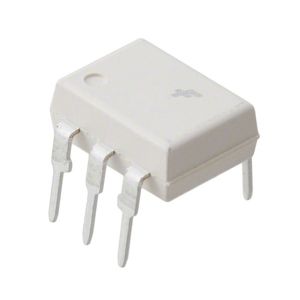

74OL6010300
