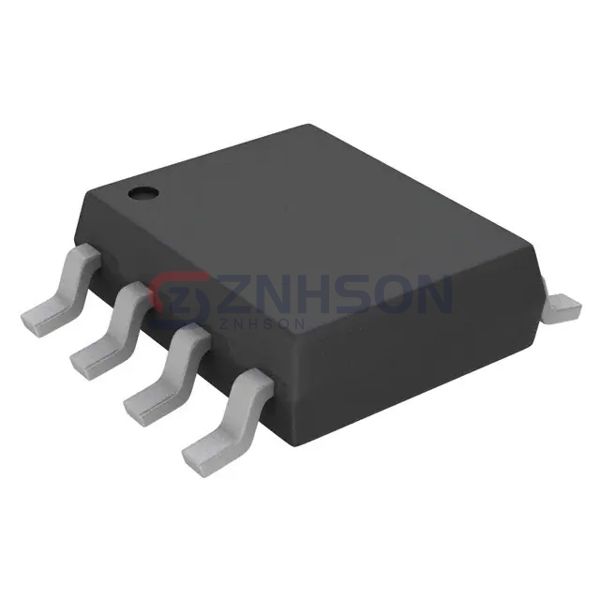

TLP2168(TP,F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISO 2.5KV 2CH OPN COL 8SO
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Toshiba Semiconductor and Storage TLP2168(TP,F) Optoisolators - Logic Output are designed for high-performance signal isolation in critical applications. Featuring robust construction, high noise immunity, and fast response times, these isolators are perfect for use in harsh industrial environments, automotive systems, and smart grids. Partner with Toshiba Semiconductor and Storage for superior quality. Contact us for details!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 15kV/µs
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 25 mA
- Data Rate: 20MBd
- Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Voltage - Forward (Vf) (Typ): 1.57V
- Current - DC Forward (If) (Max): 25mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO
Related Products
Broadcom Limited
HCPL-2201#360
Broadcom Limited
HCPL-2201#060
Broadcom Limited
HCPL-263A#500
onsemi
MOC5008SR2VM
onsemi
MOC5009FVM
Broadcom Limited
HCPL-261N#020
Fairchild Semiconductor

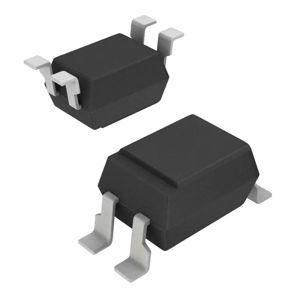

FOD8163S
