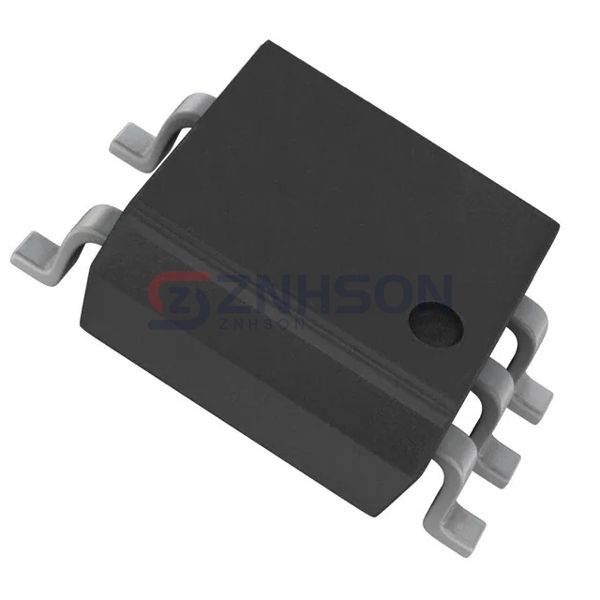

TLP2098(F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISO 3.75KV PSH PULL 6MFSOP-5
$0.00
Available to order
Reference Price (USD)
1+
$4.95000
10+
$4.12500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Toshiba Semiconductor and Storage TLP2098(F) Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Toshiba Semiconductor and Storage for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 15kV/µs
- Input Type: AC, DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 25 mA
- Data Rate: 5Mbps
- Propagation Delay tpLH / tpHL (Max): 250ns, 250ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Voltage - Forward (Vf) (Typ): 1.57V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 3V ~ 20V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.173", 4.40mm Width), 5 Leads
- Supplier Device Package: 6-MFSOP, 5 Lead
