TLP109(V4-TPL,E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISO 3.75KV TRANS 6-SO 5 LEAD
$1.83
Available to order
Reference Price (USD)
3,000+
$0.46816
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure optimal performance in your electronic designs with TLP109(V4-TPL,E Optoisolators from Toshiba Semiconductor and Storage. Featuring Photovoltaic Output, these isolators are ideal for applications in automotive, IoT, and smart grid systems, offering high-speed signal transmission and robust isolation. Backed by Toshiba Semiconductor and Storage's expertise, these components are a smart investment for any project. Contact us today to discuss your requirements and receive a tailored quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 20% @ 16mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 800ns, 800ns (Max)
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 20V
- Current - Output / Channel: 8mA
- Voltage - Forward (Vf) (Typ): 1.64V
- Current - DC Forward (If) (Max): 20 mA
- Vce Saturation (Max): -
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.179", 4.55mm Width), 5 Leads
- Supplier Device Package: 6-SO, 5 Lead
Related Products
Lite-On Inc.
LTV-702FM
Broadcom Limited
ACPL-054L-560E
Everlight Electronics Co Ltd
H11AA4S1(TB)-V
Broadcom Limited
HCPL-4701-060E
Fairchild Semiconductor
H11AG1SM
Broadcom Limited
5962-8767905KEC
Toshiba Semiconductor and Storage
TLP184(Y-TPL,SE
Toshiba Semiconductor and Storage

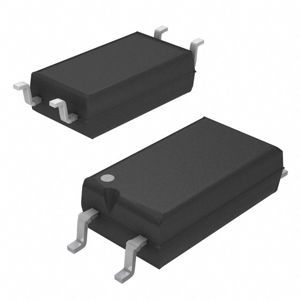

TLP385(D4-GR,E
