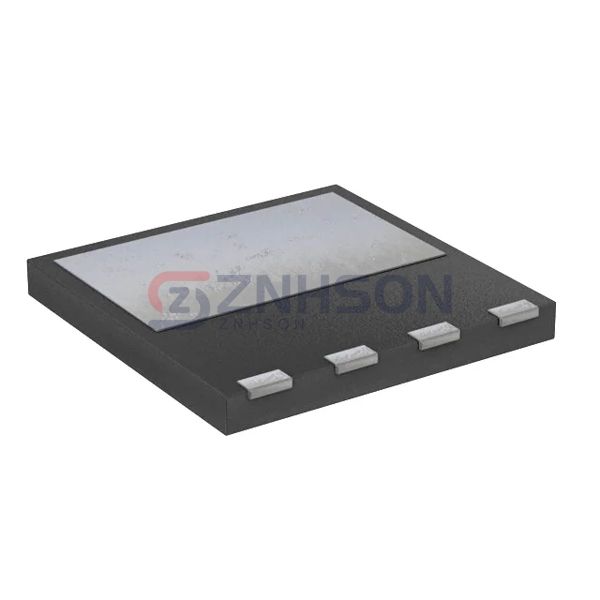

TK20V60W5,LVQ
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 600V 20A 4DFN
$2.94
Available to order
Reference Price (USD)
2,500+
$1.41120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover TK20V60W5,LVQ, a versatile Transistors - FETs, MOSFETs - Single solution from Toshiba Semiconductor and Storage, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 190mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 55 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1800 pF @ 300 V
- FET Feature: -
- Power Dissipation (Max): 156W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 4-DFN-EP (8x8)
- Package / Case: 4-VSFN Exposed Pad
