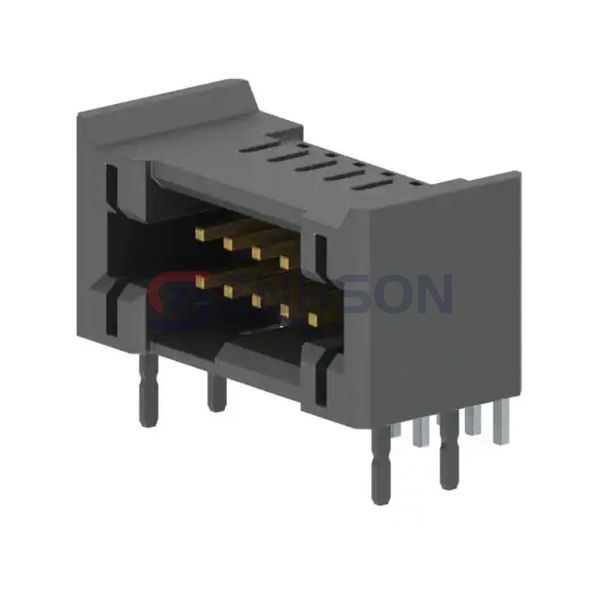

TFM-105-01-L-D-RE2-WT
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 10POS 1.27MM
$4.46
Available to order
Reference Price (USD)
1+
$2.78000
41+
$2.44195
123+
$2.22000
533+
$1.88700
1,025+
$1.60950
5,002+
$1.44300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with TFM-105-01-L-D-RE2-WT Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.139" (3.53mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.256" (6.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
Related Products
Samtec Inc.
TMM-108-04-G-D-SM-A
TE Connectivity AMP Connectors
292228-7
Adam Tech
HPH1-B-14-UA
Samtec Inc.

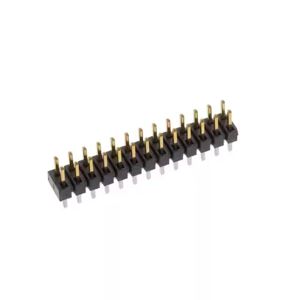

TMMH-113-01-L-D
Molex

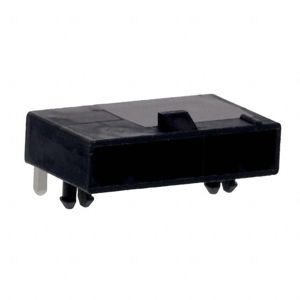

1726480105
Hirose Electric Co Ltd
DF1B-36DP-2.5DSA(01)
Samtec Inc.

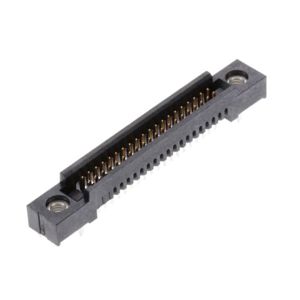

TFM-120-01-L-D-DS
Amphenol ICC (FCI)

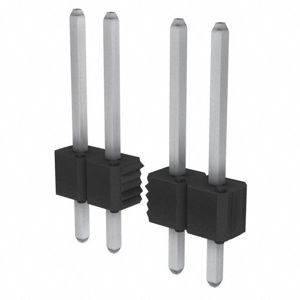

54101-T30-05
