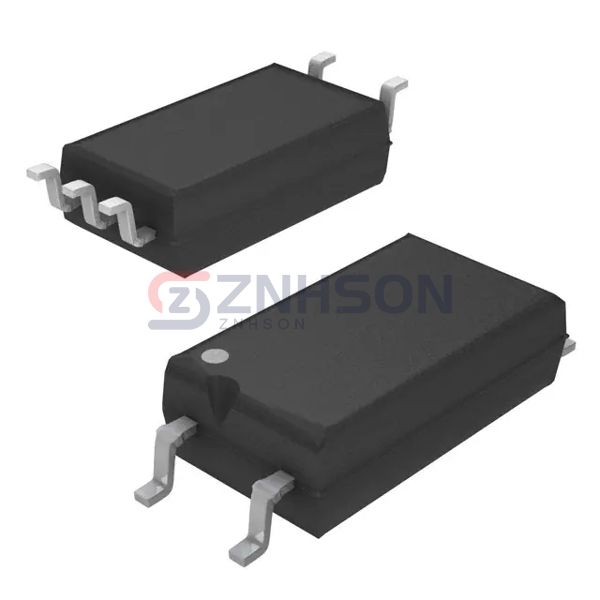

TCLT1111
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE SOP-6L5
$0.26
Available to order
Reference Price (USD)
3,000+
$0.25200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronics with Vishay Semiconductor Opto Division's TCLT1111 Optoisolators - Transistor, Photovoltaic Output, offering superior isolation and signal transmission. These components are perfect for applications requiring high voltage separation, such as power supplies, motor controls, and PLC systems. With robust construction and long-term durability, our optoisolators ensure seamless performance in demanding environments. Interested in learning more? Submit your inquiry now and let our experts assist you!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 40% @ 10mA
- Current Transfer Ratio (Max): 80% @ 10mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width), 5 Leads
- Supplier Device Package: 6-SOP, 5 Pin
